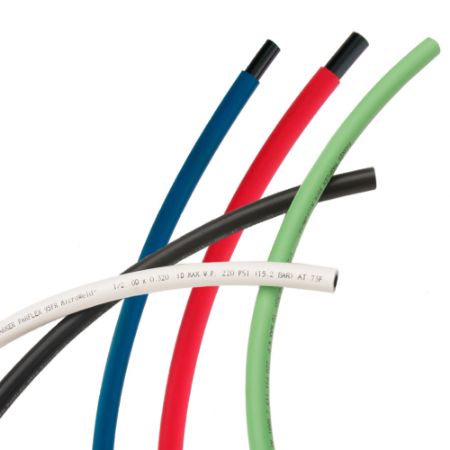

PU Tubing - Flame Resistant
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The 95FR Series Weld Spatter Resistant Tubing is lightweight and extremely flexible. It is an ideal option for low to medium pressure air and water supply lines where weld spatter protection is required. The double wall design has a flame resistant jacket made from a material that meets the UL94 V-0 standard and the tubing offers excellent hydrolytic stability, ensuring the tube will not degrade when used in water based applications. Parflex 95FR tubing is available in multiple colors for easy line identification.
Markets:
• Industrial
Features/Benefits:
• UL-94 V0 Flame resistant jacket material
• Exellent flexibility
• Abrasion resistant
• Moisture resistant
• Weld Spatter resistant
• Grease and Oil resistant
• Silicone and Halogen free
Applications:
• Pneumatic Systems
• Robotic Welding
• End-of-Arm Tooling
• General Robotics
• General Automation
Technical Specifications:
• Working and burst pressures rated at 73°F /23°C
Read More...Markets:
• Industrial
Features/Benefits:
• UL-94 V0 Flame resistant jacket material
• Exellent flexibility
• Abrasion resistant
• Moisture resistant
• Weld Spatter resistant
• Grease and Oil resistant
• Silicone and Halogen free
Applications:
• Pneumatic Systems
• Robotic Welding
• End-of-Arm Tooling
• General Robotics
• General Automation
Technical Specifications:
• Working and burst pressures rated at 73°F /23°C
| Action | Part No. | Availability | Partner Available | Price | Minimum Operating Temperature | Diameter | Application | Product Type | Cover Material | Minimum Bend Radius | Length per Package | Tube Material | Tube Outside Diameter | Weight | Maximum Operating Pressure | Tube Inside Diameter | Cover Color | Division | Maximum Operating Temperature | Minimum Burst Pressure | Cover Thickness | Compatible Fitting | Order Size | Product Type | Standard Pack Qty (ft) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95FR-4-BLU-0250 | Quote Required | TBD | -40 °C | 0.340 inch | Pneumatic Systems | Fractional | Proprietary Material | 3/4 inch | 250 ft | Polyurethane | 1/4 inch | 0.062 kg/m | 1.65 MPa | 3.0 mm | Blue | Parflex Division | 165 °F | 720 psi | 0.045 inch | 68PLM | -4 | Inch | 250.0 | Blue | ||
| 95FR-6-BLK-0500 | Quote Required | TBD | -40 °C | 0.465 inch | Welding | Fractional | Proprietary Material | 7/8 inch | 500 ft | Polyurethane | 9.5 mm | 0.103 kg/m | 1.65 MPa | 6.4 mm | Black | Parflex Division | 165 °F | 48 bar | 0.045 inch | 68PLM | -6 | Inch | 500.0 | Black | ||
| 95FR-8-WHT-0250 | Quote Required | $3.50/each | -40 °C | 0.590 inch | Pneumatic Systems | Fractional | Proprietary Material | 2 inch | 250 ft | Polyurethane | 1/2 inch | 0.108 lb/ft | 220 psi | 8.1 mm | White | Parflex Division | 165 °F | 46 bar | 0.045 inch | 68PLM | -8 | Inch | 250.0 | White | ||
| 95FRM-6-BLU-0250 | Quote Required | TBD | -40 °F | Welding | Metric | Proprietary Material | 20 mm | 250 ft | Polyurethane | 0.236 inch | 0.057 kg/m | 218 psi | 4 mm | Blue | Parflex Division | 75 °C | 653 psi | 1.1 mm | 68PLM | 6MM | Metric | 250.0 | Blue | |||
| 95FRM-6-RED-0250 | Quote Required | TBD | -40 | 0.315 | Robotics | Metric | Proprietary Material | 3/4 | 250 | Polyurethane | 6 | 0.038 | 218 | 4 | Red | Parflex Division | 165 | 653 | 1.1 | 68PLM | 6MM | Metric | 250.0 | Red | ||
| 95FRM-8-BLU-0250 | Quote Required | TBD | -40 °C | 10 mm | Robotics | Metric | Proprietary Material | 22 mm | 250 ft | Polyurethane | 8 mm | 0.085 kg/m | 1.80 MPa | 0.197 inch | Blue | Parflex Division | 165 °F | 54 bar | 1.1 mm | 68PLM | 8MM | Metric | 250.0 | Blue |
