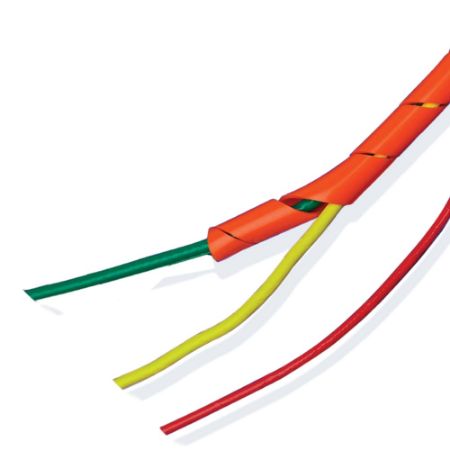

PTFE Spiral Cut Cable Wrap
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
PTFE Spiral Wrap is a flexible, chemical resistant covering that can be used to bundle wires, hoses, cords and cables and still allow individual routing out of the bundle.
Markets:
• Aerospace
• Automotive
• Industrial
Features/Benefits:
• Provides harnessing for wires and cable while allowing leads at various points
• Exceptional heat resistance
• Self-extinguishing
• Flexible
• Superior dielectric strength
• Available in left- or right-hand cut
Applications:
• Cable harnessing
• Wiring closets
Certifications:
• A-A-59602
• AMS 3653E
• ASTM D3295
• VW1, UL-83 (natural)
Technical Specifications:
• Dimensions are nominal
• Available in non-continuous 100 ft or 500 ft spools
• 100 ft. is the minimum item quantity sold
• Packaged on spools
• Custom packaging, sizes and colors are available upon request
• Spiral cut cable wrap is also quoted in FEP upon request
• All dimensions are nominal
| Action | Part No. | Availability | Partner Available | Price | Pitch Diameter | Division | Maximum Operating Temperature | Minimum Operating Temperature | Product Style | Tube Material | Specifications Met | Disclaimer | Outside Diameter | Tube Type | Outside Diameter (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TSWTF-1/2-NT-L | Quote Required | $6.08/each | 0.562 | Parflex Division | 260 °C | -268 °C | Left Hand Cut | Polytetrafluoroethylene (PTFE) | AMS 3653E | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 0.5 inch | Left Hand Cut | 0.5 | ||
| TSWTF-1/2-NT-R | Quote Required | 250 In Stock | $6.08/each | 0.562 | Parflex Division | 500 °F | -450 °F | Right Hand Cut | Polytetrafluoroethylene (PTFE) | ASTM D3295 | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 0.5 inch | Right Hand Cut | 0.5 | |
| TSWTF-1/4-NT-L | Quote Required | $2.66/each | 0.375 | Parflex Division | 260 °C | -268 °C | Left Hand Cut | Polytetrafluoroethylene (PTFE) | RoHS | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 0.25 inch | Left Hand Cut | 0.25 | ||
| TSWTF-1/4-NT-R | Quote Required | $2.66/each | 0.375 | Parflex Division | 500 °F | -268 °C | Right Hand Cut | Polytetrafluoroethylene (PTFE) | AMS 3653E | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 0.25 inch | Right Hand Cut | 0.25 | ||
| TSWTF-3/16-NT-L | Quote Required | $1.94/each | 0.312 | Parflex Division | 260 °C | -268 °C | Left Hand Cut | Polytetrafluoroethylene (PTFE) | AMS 3653E | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 0.188 inch | Left Hand Cut | 0.188 | ||
| TSWTF-3/16-NT-R | Quote Required | $1.94/each | 0.312 | Parflex Division | 500 °F | -268 °C | Right Hand Cut | Polytetrafluoroethylene (PTFE) | AMS 3653E | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 0.188 inch | Right Hand Cut | 0.188 | ||
| TSWTF-3/8-NT-L | Quote Required | $5.29/each | 0.437 | Parflex Division | 500 °F | -450 °F | Left Hand Cut | Polytetrafluoroethylene (PTFE) | ASTM D3295 | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 0.375 inch | Left Hand Cut | 0.375 | ||
| TSWTF-3/8-NT-R | Quote Required | $5.29/each | 0.437 | Parflex Division | 500 °F | -268 °C | Right Hand Cut | Polytetrafluoroethylene (PTFE) | ASTM D3295 | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 0.375 inch | Right Hand Cut | 0.375 |
