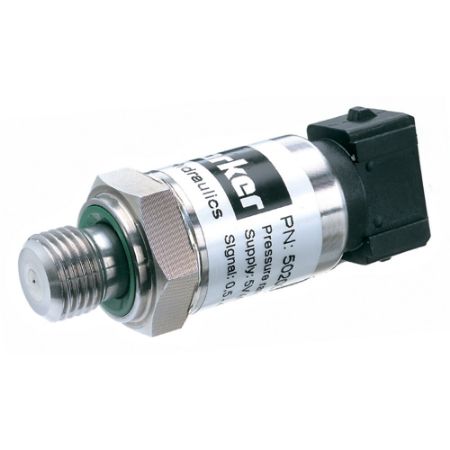

Pressure Sensors - IQAN-SP
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s IQAN-SP is a range of pressure transducers for mobile hydraulic applications. The IQAN-SP has stainless steel construction for strength. Its sensor cells use thin film technology with no internal o-rings or fluid. The high pressure capability makes the sensor very robust and able to withstand vibration.
The transducers are available in two pressure ranges; 35 bar (500 psi) and 500 bar (7250 psi). The signal range is ideal for mobile equipment, being 0.5 - 4.5 VDC over the full scale of the sensor.
The IQAN-SP comes in 2 mounting configurations:
• G1/4 BSPP threaded interface with integral AMP/Tyco (Bosch Jetronic) connector
• 9/16-18 UNF (6 SAE) threaded interface with Deutsch DT connector attached to a short cable
This makes the IQAN-SP perfect for construction and other mobile applications anywhere in the world.
Markets:
• Construction equipment
• Forestry equipment
• Agriculture machinery
• Material handling equipment
• Mining
Features/Benefits:
• Stainless steel body for strength.
• 2 pressure ranges for monitoring high or low pressure functions.
• Different mounting options support use in any region.
• Output signal tailored to mobile equipment.
Applications:
• Refuse trucks
• Crop sprayers
• Fork lifts and telehandlers
• Feller bunchers and forwarders
• Rock drills
Read More...The transducers are available in two pressure ranges; 35 bar (500 psi) and 500 bar (7250 psi). The signal range is ideal for mobile equipment, being 0.5 - 4.5 VDC over the full scale of the sensor.
The IQAN-SP comes in 2 mounting configurations:
• G1/4 BSPP threaded interface with integral AMP/Tyco (Bosch Jetronic) connector
• 9/16-18 UNF (6 SAE) threaded interface with Deutsch DT connector attached to a short cable
This makes the IQAN-SP perfect for construction and other mobile applications anywhere in the world.
Markets:
• Construction equipment
• Forestry equipment
• Agriculture machinery
• Material handling equipment
• Mining
Features/Benefits:
• Stainless steel body for strength.
• 2 pressure ranges for monitoring high or low pressure functions.
• Different mounting options support use in any region.
• Output signal tailored to mobile equipment.
Applications:
• Refuse trucks
• Crop sprayers
• Fork lifts and telehandlers
• Feller bunchers and forwarders
• Rock drills
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Signal Output | Connection Type | Sensor Type | Electrical Connection | Pressure Range (bar) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2820008 | 10 In Stock | Quote Required | $181.46 | EA | Electronic Motion and Controls Division | 0.5 to 4.5 VDC | 9/16-18 UNF | Pressure | Deutsch DT | 0-35 | |
| 2820009 | Quote Required | 43 In Stock | $353.88 | EA | Electronic Motion and Controls Division | 0.5 to 4.5 | 9/16-18 UNF | Pressure | Deutsch DT | 0-500 | |
| 5020026 | Quote Required | TBD | Electronic Motion and Controls Division | 0.5 to 4.5 VDC | G1/4 BSPP | Pressure | AMP/Tyco | 0-35 | |||
| 5020027 | Quote Required | $353.88 | EA | Electronic Motion and Controls Division | 0.5 to 4.5 VDC | G1/4 BSPP | Pressure | AMP/Tyco | 0-500 |
