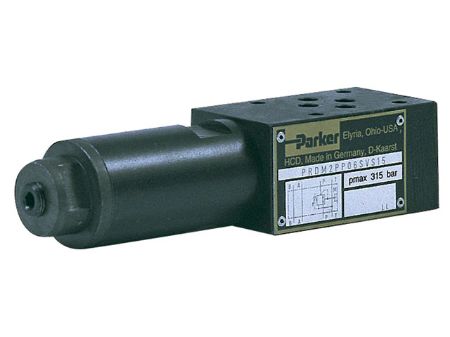

PRDM Series - Pressure Reducing - NFPA D05 (CETOP 5, NG 10)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
PRDM Series - Pressure Reducing Parker Manapak Subplate Sandwich Module
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Controlled Ports | Pressure Range | Gauge Port Size | Max Flow (at 3000 PSI) | Adjustment Type | Pkg Qty | Seals | Parker Division | Series | Pressure Range | Max Pressure | Adjustment Type | Controlled Ports | Subplate Pattern | Port Size | Parker Group | Port Type | Max Flow (at 3000 PSI) | Seals |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRDM3AA21SVG | Quote Required | $1,279.50/each | EA | EA | A Port | 116 to 3045 PSI (8 to 210 Bar) | 1/4 BSPP | 21 GPM (81 LPM) | Screw | 1 | Fluorocarbon | Hydraulic Valve | PRDM | 116 to 3045 PSI (8 to 210 Bar) | 4500 PSI (315 Bar) | Screw | A Port | NFPA D05 (CETOP 5, NG 10) | 1/4 BSPP | Hydraulic | BSPP | 21 GPM (81 LPM) | Fluorocarbon | ||
| PRDM3BB05KNS | Quote Required | $3,163.88/each | EA | EA | B Port | 29 to 725 PSI (2 to 50 Bar) | 4 SAE | 21 GPM (81 LPM) | Knob | 1 | Buna-N (Nitrile) | Hydraulic Valve | PRDM | 29 to 725 PSI (2 to 50 Bar) | 4500 PSI (315 Bar) | Knob | B Port | NFPA D05 (CETOP 5, NG 10) | 4 SAE | Hydraulic | SAE | 21 GPM (81 LPM) | Buna-N (Nitrile) | ||
| PRDM3PP05SNS | Quote Required | 2 Limited Stock | $1,359.75/each | EA | EA | P Port | 29 to 725 PSI (2 to 50 Bar) | 4 SAE | 21 GPM (81 LPM) | Screw | 1 | Buna-N (Nitrile) | Hydraulic Valve | PRDM | 29 to 725 PSI (2 to 50 Bar) | 4500 PSI (315 Bar) | Screw | P Port | NFPA D05 (CETOP 5, NG 10) | 4 SAE | Hydraulic | SAE | 21 GPM (81 LPM) | Buna-N (Nitrile) | |
| PRDM3PP10SNS | Quote Required | $1,359.75/each | EA | EA | P Port | 58 to 1450 PSI (4 to 100 Bar) | 4 SAE | 21 GPM (81 LPM) | Screw | 1 | Buna-N (Nitrile) | Hydraulic Valve | PRDM | 58 to 1450 PSI (4 to 100 Bar) | 4500 PSI (315 Bar) | Screw | P Port | NFPA D05 (CETOP 5, NG 10) | 4 SAE | Hydraulic | SAE | 21 GPM (81 LPM) | Buna-N (Nitrile) | ||
| PRDM3PP10SVS | Quote Required | $1,395.75/each | EA | EA | P Port | 58 to 1450 PSI (4 to 100 Bar) | 4 SAE | 21 GPM (81 LPM) | Screw | 1 | Fluorocarbon | Hydraulic Valve | PRDM | 58 to 1450 PSI (4 to 100 Bar) | 4500 PSI (315 Bar) | Screw | P Port | NFPA D05 (CETOP 5, NG 10) | 4 SAE | Hydraulic | SAE | 21 GPM (81 LPM) | Fluorocarbon | ||
| PRDM3PP15SNN | Quote Required | 1 Limited Stock | $1,401.00/each | EA | EA | P Port | 87 to 2175 PSI (6 to 150 Bar) | 1/4 NPT | 21 GPM (81 LPM) | Screw | 1 | Buna-N (Nitrile) | Hydraulic Valve | PRDM | 87 to 2175 PSI (6 to 150 Bar) | 4500 PSI (315 Bar) | Screw | P Port | NFPA D05 (CETOP 5, NG 10) | 1/4 NPT | Hydraulic | NPT | 21 GPM (81 LPM) | Buna-N (Nitrile) | |
| PRDM3PP15SVG | Quote Required | $1,446.00/each | EA | EA | P Port | 87 to 2175 PSI (6 to 150 Bar) | 1/4 BSPP | 21 GPM (81 LPM) | Screw | 1 | Fluorocarbon | Hydraulic Valve | PRDM | 87 to 2175 PSI (6 to 150 Bar) | 4500 PSI (315 Bar) | Screw | P Port | NFPA D05 (CETOP 5, NG 10) | 1/4 BSPP | Hydraulic | BSPP | 21 GPM (81 LPM) | Fluorocarbon | ||
| PRDM3PP15SVS | Quote Required | $1,395.75/each | EA | EA | P Port | 87 to 2175 PSI (6 to 150 Bar) | 4 SAE | 21 GPM (81 LPM) | Screw | 1 | Fluorocarbon | Hydraulic Valve | PRDM | 87 to 2175 PSI (6 to 150 Bar) | 4500 PSI (315 Bar) | Screw | P Port | NFPA D05 (CETOP 5, NG 10) | 4 SAE | Hydraulic | SAE | 21 GPM (81 LPM) | Fluorocarbon | ||
| PRDM3PP21KNS | Quote Required | $1,200.75/each | EA | EA | P Port | 116 to 3045 PSI (8 to 210 Bar) | 4 SAE | 21 GPM (81 LPM) | Knob | 1 | Buna-N (Nitrile) | Hydraulic Valve | PRDM | 116 to 3045 PSI (8 to 210 Bar) | 4500 PSI (315 Bar) | Knob | P Port | NFPA D05 (CETOP 5, NG 10) | 4 SAE | Hydraulic | SAE | 21 GPM (81 LPM) | Buna-N (Nitrile) | ||
| PRDM3PP21SNS | Quote Required | 4 In Stock | $1,200.75/each | EA | EA | P Port | 116 to 3045 PSI (8 to 210 Bar) | 4 SAE | 21 GPM (81 LPM) | Screw | 1 | Buna-N (Nitrile) | Hydraulic Valve | PRDM | 116 to 3045 PSI (8 to 210 Bar) | 4500 PSI (315 Bar) | Screw | P Port | NFPA D05 (CETOP 5, NG 10) | 4 SAE | Hydraulic | SAE | 21 GPM (81 LPM) | Buna-N (Nitrile) |
