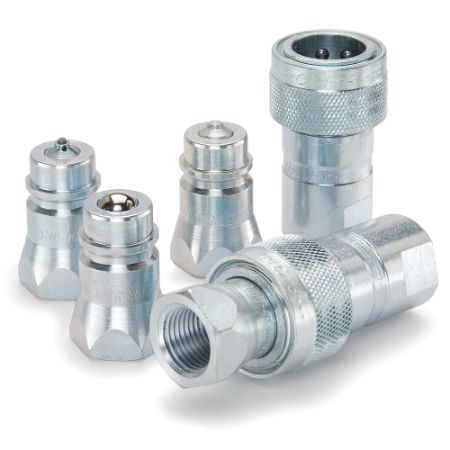

Pioneer, Agriculture Quick Couplings, ISO 5675 / ISO 7241 - 4000 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
4000 Series Couplers (hydraulic) 3000 psi, connect with 4000 Series Nipples and 1/2" 8010 Series, ISO 5675 Pioneer tips and ISO 7241 nipples. Parker's 4000 Series are double shut-off quick couplings with poppet or ball valve options. Couplers have a manual sleeve. Push-pull breakaway sleeve is only available on 1/4" body size with 9/16 - 18 ORB thread, part number 4050P-T6.
4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
• Snow removal
• Industrial
Features/Benefits:
• Proven design for rugged applications
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2" size globally connects with ISO 5675 Pioneer tips and ISO 7241 nipples
Applications:
• Tractors and agricultural equipment
• Hydraulic loaders
• Add-on hydraulic circuits
• Hydraulic tools
• Snow plow attachments
Read More...4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
• Snow removal
• Industrial
Features/Benefits:
• Proven design for rugged applications
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2" size globally connects with ISO 5675 Pioneer tips and ISO 7241 nipples
Applications:
• Tractors and agricultural equipment
• Hydraulic loaders
• Add-on hydraulic circuits
• Hydraulic tools
• Snow plow attachments
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Minimum Operating Temperature | Maximum Operating Pressure | Flow Rate | Application | Seal Material | Dimensional Weight | Specifications Met | Hex Size | Body Material | Maximum Operating Temperature | Plating Type | Connection Thread Size (inch) | Coupling Half | Valve Type | Body Size (inch) | Product Type | Connection Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4010-2P | 18 In Stock | 752 In Stock | $13.58 | EA | Quick Coupling Division | -40 °F | 3000 psi | 3 Gal/min | Hydraulics | Nitrile | 0.01999400479616307 lb | N/A | 0.75 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 1/4 - 18 | Male Nipple | Poppet | 1/4 | Manual sleeve | Female NPTF | |
| 4010-3P | 57 In Stock | 329 In Stock | $17.15 | EA | Quick Coupling Division | -40 °F | 3000 psi | 6 Gal/min | Hydraulics | Nitrile | 0.03998800959232614 lb | N/A | 0.94 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 3/8 - 18 | Male Nipple | Poppet | 3/8 | Manual sleeve | Female NPTF | |
| 4010-6P | 17 In Stock | 122 In Stock | $57.23 | EA | Quick Coupling Division | -40 °F | 3000 psi | 50 Gal/min | Hydraulics | Nitrile | 0.11236510791366906 lb | N/A | 1.63 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 1 - 11 1/2 | Male Nipple | Poppet | 1 | Manual sleeve | Female NPTF | |
| 4010-T6 | Quote Required | 42 In Stock | $20.05 | EA | Quick Coupling Division | -40 °F | 3000 psi | 3 Gal/min | Hydraulics | Nitrile | 0.01999400479616307 lb | N/A | 0.75 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 9/16 - 18 | Male Nipple | Poppet | 1/4 | Manual sleeve | Female ORB | |
| 4050-15 | 33 In Stock | 75 In Stock | $43.89 | EA | Quick Coupling Division | -40 °F | 3000 psi | 12 Gal/min | Hydraulics | Nitrile | 0.15995203836930455 lb | ISO 5675 | 1.06 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 3/4 - 16 | Female Coupler | Ball | 1/2 | Manual sleeve | Female ORB | |
| 4050-15P | 10 In Stock | 229 In Stock | $46.86 | EA | Quick Coupling Division | -40 °F | 3000 psi | 12 Gal/min | Hydraulics | Nitrile | 0.15995203836930455 lb | ISO 5675 | 1.06 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 3/4 - 16 | Female Coupler | Poppet | 1/2 | Manual sleeve | Female ORB | |
| 4050-16 | Quote Required | 81 In Stock | $50.13 | EA | Quick Coupling Division | -40 °F | 3000 psi | 12 Gal/min | General Purpose | Nitrile | 0.15995203836930455 lb | ISO 5675 | 1.06 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 7/8 - 14 | Female Coupler | Ball | 1/2 | Manual sleeve | Female ORB | |
| 4050-16P | Quote Required | TBD | Quick Coupling Division | -40 °F | 3000 psi | 12 Gal/min | General Purpose | Nitrile | 0.12464028776978417 lb | ISO 5675 | 1.06 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 7/8 - 14 | Female Coupler | Poppet | 1/2 | Manual sleeve | Female ORB | |||
| 4050-29BSPP | Quote Required | TBD | Quick Coupling Division | -40 °F | 3000 psi | 12 Gal/min | Hydraulics | Nitrile | ISO 5675 | 1.06 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 1/2 - 14 | Female Coupler | Ball | 1/2 | Manual sleeve | Female BSPP | ||||
| 4050-2P | 27 In Stock | 442 In Stock | $31.95 | EA | Quick Coupling Division | -40 °F | 3000 psi | 3 Gal/min | General Purpose | Nitrile | 0.03998800959232614 lb | N/A | 0.88 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 1/4 - 18 | Female Coupler | Poppet | 1/4 | Manual sleeve | Female NPTF | |
| 4050-2P-T8M | Quote Required | TBD | Quick Coupling Division | -40 °F | 3000 psi | 3 Gal/min | General Purpose | Nitrile | 0.025786870503597122 lb | N/A | 0.88 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 3/4 - 16 | Female Coupler | Poppet | 1/4 | Manual sleeve | Male ORB | |||
| 4050-3P | 32 In Stock | 210 In Stock | $42.70 | EA | Quick Coupling Division | -40 °F | 3000 psi | 6 Gal/min | Hydraulics | Nitrile | 0.07997601918465227 lb | N/A | 0.94 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 3/8 - 18 | Female Coupler | Poppet | 3/8 | Manual sleeve | Female NPTF | |
| 4050-4 | 105 In Stock | 596 In Stock | $38.59 | EA | Quick Coupling Division | -40 °F | 3000 psi | 12 Gal/min | Hydraulics | Nitrile | 0.15995203836930455 lb | ISO 5675 | 1.06 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 1/2 - 14 | Female Coupler | Ball | 1/2 | Manual sleeve | Female NPTF | |
| 4050-4P | 6 In Stock | 293 In Stock | $38.59 | EA | Quick Coupling Division | -40 °F | 3000 psi | 12 Gal/min | Hydraulics | Nitrile | 0.15995203836930455 lb | ISO 5675 | 1.06 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 1/2 - 14 | Female Coupler | Poppet | 1/2 | Manual sleeve | Female NPTF | |
| 4050-5 | 8 In Stock | 155 In Stock | $52.81 | EA | Quick Coupling Division | -40 °F | 3000 psi | 12 Gal/min | Hydraulics | Nitrile | 0.15995203836930455 lb | ISO 5675 | 1.13 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 3/4 - 14 | Female Coupler | Ball | 1/2 | Manual sleeve | Female NPTF | |
| 4050-5P | 6 In Stock | 37 In Stock | $56.91 | EA | Quick Coupling Division | -40 °F | 3000 psi | 12 Gal/min | General Purpose | Nitrile | 0.15995203836930455 lb | ISO 5675 | 1.13 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 3/4 - 14 | Female Coupler | Poppet | 1/2 | Manual sleeve | Female NPTF | |
| 4050-6P | 23 In Stock | 99 In Stock | $121.31 | EA | Quick Coupling Division | -40 °F | 3000 psi | 50 Gal/min | General Purpose | Nitrile | 0.22473021582733813 lb | N/A | 1.63 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 1 - 11 1/2 | Female Coupler | Poppet | 1 | Manual sleeve | Female NPTF | |
| 4050P-T6 | Quote Required | TBD | Quick Coupling Division | -40 °F | 3000 psi | 3 Gal/min | Hydraulics | Nitrile | N/A | 0.88 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 9/16 - 18 | Female Coupler | Poppet | 1/4 | Push pull sleeve | Female ORB | ||||
| 4050-T6 | Quote Required | 5 In Stock | $37.56 | EA | Quick Coupling Division | -40 °F | 3000 psi | 3 Gal/min | General Purpose | Nitrile | 0.02670863309352518 lb | N/A | 0.88 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 9/16 - 18 | Female Coupler | Poppet | 1/4 | Manual sleeve | Female ORB | |
| 4110-5 | 20 In Stock | 145 In Stock | $45.16 | EA | Quick Coupling Division | -40 °F | 3000 psi | 28 Gal/min | Hydraulics | n/a | 0.062320143884892085 lb | N/A | 1.31 inch | Steel | 250 °F | Zinc with clear trivalent chromate | 3/4 - 14 | Male Nipple | Ball | 3/4 | Manual sleeve | Female NPTF |
