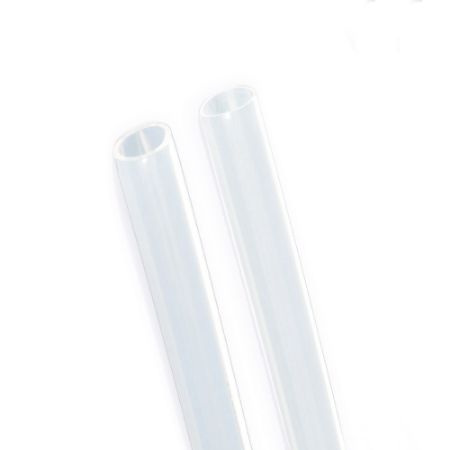

PFA Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PFA tubing is chemically inert, odorless, taste-less, non-wetting and non-leaching and is often used in fluid and material handling applications, such as chemical transfer. However, it also performs well in food & beverage or medical applications. Using bulk reels up to 1000 feet aid customers in providing installations with continuous length assemblies, free of connectors, and also reducing scrap when producing shorter length assemblies. Parker’s extrusion process starts with a PFA resin that offers a high molecular weight and high resistance to stress cracking, allowing the tubing to be used with flare or conventional fittings. Series 104 PFA is considered Parker’s standard PFA tubing and offers a low level of extractables. High purity PFA resins, designed for specifically for semiconductor applications, are also available. See Parker’s “High Purity PFA - Series 105” for more information.

Markets:
• Semiconductor
• Pharmaceutical
• Instrumentation
• Food & Beverage

Features Benefits:
• No process contamination
• Exceptional heat resistance
• Higher flow for improved production runs
• Chemically inert to nearly all industrial chemicals and solvents
• Low coefficient of friction
• Self extenguishing
• Low permeability
• Translucent
• Long continuous lengths

Certifications/Compliance:
• ASTM D3307
• 21 CFR 177.1550 compliant
• USP Class VI Compliant
• UL 94 V-0 compliant

Technical Specifications:
• Extruded from virgin PFA (Perfluoroalkoxy)
• Qualified with fittings from Parker Fluid System Connectors Division Fittings (See Brass Composite
and Thermoplastic Fittings and Valves Catalog CAT3501E USA)
• Working and burst pressures rated at 73°F /23°C
• All dimensions are nominal
• Random length coils, quantities are not continuous
• Continuous lengths and colors available as a custom run - Contact customer service

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Media	Maximum Operating Temperature	Specifications Met	Color	Length per Package	Weight	Compatible Fitting	Tube Outside Diameter	Minimum Operating Temperature	Minimum Bend Radius	Application	Tube Material	Tube Inside Diameter	Minimum Burst Pressure	Maximum Operating Pressure	Order Size	Product Type	Tube Wall Thickness	Standard Pack Qty (ft)	Tube Inside Diameter	Tube Outside Diameter
104-0125031-NT-100	Quote Required	Quote Required	TBD		Air	500 °F	USP Class VI	Clear	100 ft	0.013 kg/m	Compression	0.125 inch	-75 °C	3/8 inch	Flow Monitoring	Perfluoroalkoxy Alkanes (PFA)	0.064 inch	2000 psi	34 bar	1/8	Industrial Wall	0.031	100.0	0.064	0.125
104-0125031-NT-1000	Quote Required	Quote Required	TBD		Water	500 °F	USP Class VI	Clear	305.0 m	0.009 lb/ft	Compression	3.18 mm	-100 °F	3/8 inch	Laboratory	Perfluoroalkoxy Alkanes (PFA)	0.064 inch	138 bar	34 bar	1/8	Industrial Wall	0.031	1000.0	0.064	0.125
104-0125031-NT-25	Quote Required	Quote Required	TBD		Water	260 °C	ASTM D3307	Clear	25 ft	0.009 lb/ft	TrueSeal™	3.18 mm	-100 °F	10 mm	Gas Sampling	Perfluoroalkoxy Alkanes (PFA)	1.63 mm	138 bar	500 bar	1/8	Industrial Wall	0.031	25.0	0.064	0.125
104-0125031-NT-50	Quote Required	Quote Required	TBD		Water	500 °F	ASTM D3307	Clear	50 ft	0.009 lb/ft	TrueSeal™	0.125 inch	-100 °F	3/8 inch	Laboratory	Perfluoroalkoxy Alkanes (PFA)	1.63 mm	138 bar	34 bar	1/8	Industrial Wall	0.031	50.0	0.064	0.125
104-0156031-NT-100	Quote Required	Quote Required	TBD		Chemicals	500 °F	USP Class VI	Clear	100 ft	0.011 lb/ft	Compress-Align®	3.99 mm	-100 °F	16 mm	Flow Monitoring	Perfluoroalkoxy Alkanes (PFA)	0.094 inch	108 bar	27 bar	5/32	Industrial Wall	0.031	100.0	0.094	0.157
104-0156031-NT-25	Quote Required	Quote Required	TBD		Industrial Gases	500 °F	UL 94 V-0	Clear	7.6 m	0.016 kg/m	TrueSeal™	0.157 inch	-75 °C	5/8 inch	Fluid Transfer	Perfluoroalkoxy Alkanes (PFA)	2.39 mm	108 bar	27 bar	5/32	Industrial Wall	0.031	25.0	0.094	0.157
104-0156031-NT-50	Quote Required	Quote Required	TBD		Industrial Gases	500 °F	ASTM D3307	Clear	50 ft	0.011 lb/ft	TrueSeal™	3.99 mm	-100 °F	5/8 inch	Flow Monitoring	Perfluoroalkoxy Alkanes (PFA)	0.094 inch	108 bar	27 bar	5/32	Industrial Wall	0.031	50.0	0.094	0.157
104-0188031-NT-100	Quote Required	Quote Required	TBD		Industrial Gases	260 °C	FDA 21 CFR 177.1550	Clear	30.5 m	0.014 lb/ft	Compress-Align®	4.78 mm	-75 °C	5/8 inch	Steam Plant	Perfluoroalkoxy Alkanes (PFA)	3.18 mm	1280 psi	320 psi	3/16	Industrial Wall	0.031	100.0	0.125	0.188
104-0188031-NT-1000	Quote Required	Quote Required	TBD		Air	500 °F	USP Class VI	Clear	305.0 m	0.021 kg/m	Compress-Align®	0.188 inch	-100 °F	16 mm	Air	Perfluoroalkoxy Alkanes (PFA)	3.18 mm	88 bar	22 bar	3/16	Industrial Wall	0.031	1000.0	0.125	0.188
104-0188031-NT-50	Quote Required	Quote Required	TBD		Water	260 °C	UL 94 V-0	Clear	50 ft	0.021 kg/m	TrueSeal™	4.78 mm	-100 °F	5/8 inch	Semiconductor	Perfluoroalkoxy Alkanes (PFA)	3.18 mm	88 bar	22 bar	3/16	Industrial Wall	0.031	50.0	0.125	0.188
104-0188062-NT-100	Quote Required	Quote Required	TBD		Chemicals	260 °C	ASTM D3307	Clear	100 ft	0.034 kg/m	Compression	0.188 inch	-100 °F	1/4 inch	Laboratory	Perfluoroalkoxy Alkanes (PFA)	0.062 inch	174 bar	43 bar	3/16	Heavy Wall	0.062	100.0	0.064	0.188
104-0188062-NT-1000	Quote Required	Quote Required	TBD		Air	500	ASTM D3307	Clear	305.0	0.034	Compression	4.78	-75	1/4	Gas Sampling	Perfluoroalkoxy Alkanes (PFA)	0.062	2520	630	3/16	Heavy Wall	0.062	1000.0	0.064	0.188
104-0188062-NT-25	Quote Required	Quote Required	TBD		Air	500	ASTM D3307	Clear	7.6	0.034	Compression	4.78	-75	1/4	Gas Sampling	Perfluoroalkoxy Alkanes (PFA)	0.062	2520	630	3/16	Heavy Wall	0.062	25.0	0.064	0.188
104-0250031-NT-100	Quote Required	Quote Required	TBD		Chemicals	260 °C	UL 94 V-0	Clear	100 ft	0.020 lb/ft	Compress-Align®	0.250 inch	-100 °F	7/8 inch	Flow Monitoring	Perfluoroalkoxy Alkanes (PFA)	4.78 mm	63 bar	230 psi	1/4	Industrial Wall	0.031	100.0	0.188	0.25
104-0250031-NT-1000	Quote Required	Quote Required	TBD		Air	260 °C	FDA 21 CFR 177.1550	Clear	1000 ft	0.020 lb/ft	Compression	6.35 mm	-100 °F	7/8 inch	Laboratory	Perfluoroalkoxy Alkanes (PFA)	0.188 inch	920 psi	16 bar	1/4	Industrial Wall	0.031	1000.0	0.188	0.25
104-0250031-NT-25	Quote Required	Quote Required	TBD		Chemicals	260 °C	UL 94 V-0	Clear	25 ft	0.030 kg/m	TrueSeal™	6.35 mm	-100 °F	22 mm	Gas Sampling	Perfluoroalkoxy Alkanes (PFA)	4.78 mm	920 psi	16 bar	1/4	Industrial Wall	0.031	25.0	0.188	0.25
104-0250031-NT-50	Quote Required	Quote Required	TBD		Industrial Gases	260 °C	FDA 21 CFR 177.1550	Clear	50 ft	0.020 lb/ft	TrueSeal™	0.250 inch	-75 °C	22 mm	Steam Plant	Perfluoroalkoxy Alkanes (PFA)	0.188 inch	63 bar	16 bar	1/4	Industrial Wall	0.031	50.0	0.188	0.25
104-0250040-NT-100	Quote Required	172 In Stock	$3.89	FT	Industrial Gases	260 °C	FDA 21 CFR 177.1550	Clear	30.5 m	0.025 lb/ft	Compress-Align®	0.250 inch	-100 °F	1-1/4 inch	Air	Perfluoroalkoxy Alkanes (PFA)	0.17 inch	1120 psi	19 bar	1/4	Heavy Wall	0.04	100.0	0.17	0.25
104-0250040-NT-1000	Quote Required	Quote Required	TBD		Chemicals	500 °F	USP Class VI	Clear	305.0 m	0.025 lb/ft	Compression	6.35 mm	-100 °F	32 mm	Air	Perfluoroalkoxy Alkanes (PFA)	0.17 inch	77 bar	19 bar	1/4	Heavy Wall	0.04	1000.0	0.17	0.25
104-0250040-NT-25	Quote Required	Quote Required	TBD		Industrial Gases	260 °C	FDA 21 CFR 177.1550	Clear	25 ft	0.037 kg/m	TrueSeal™	0.250 inch	-75 °C	1-1/4 inch	Gas Sampling	Perfluoroalkoxy Alkanes (PFA)	4.32 mm	77 bar	19 bar	1/4	Heavy Wall	0.04	25.0	0.17	0.25
