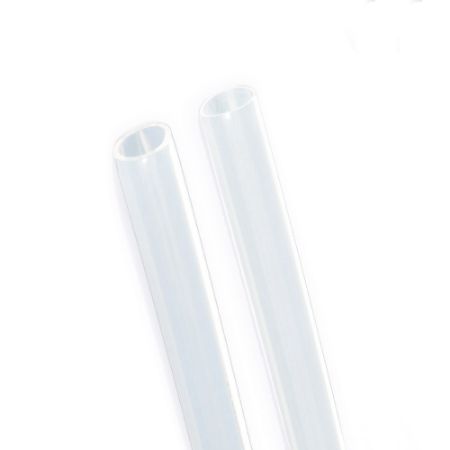

PFA High Purity Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

It only takes one compromise to taint the purity of your operation. Parker High Purity PFA tubing is designed to withstand semi-conductor high purity applications where high temperatures, harsh chemicals, and/or corrosive fluid media can cause rubber or plastic tubing to extract compounds into the fluid media or cause out gassing into the surrounding environment. It is odorless, tasteless, non-leaching and absorptive. In addition, with absorption of water less than 0.03%. High Purity PFA tubing ensures that the media passing through the tube does not leach into the fluid media nor into the tubing wall. It is often used as a clean, flexible alternative to steel metallic tubing. Parker only extrudes from high purity resins that ensure the PFA tubing will not crack, degrade or discolor. By selecting Parker’s High Purity PFA tubing, rather than a standard grade, the impurities in the tube are kept to the lowest possible level. H.P. PFA is chemically inert, odorless, non-wetting and non-leaching and is often used in fluid and material handling applications, such as harsh and corrosive chemical transfer.

Like FEP, the low refractive index allows operators to visually inspect for contaminants, flow interruptions and leak detection. In addition, tubing can be reinforced with high performance braiding to handle higher pressures. Braiding facilities are located on the premises.

Markets
• Semiconductor
• Pharmaceutical
• Instrumentation

Features
• Withstands corrosive surfactants for longer periods of time
• Highest molecular weight available
• Lowest levels of extractables
• Low permeability
• Non-leaching
• No process contamination
• Higher flow
• Translucent and flexible materials
• Chemically inert to nearly all industrial chemicals and solvents
• Low coefficient of friction
• Nonflammable materials
• Exceptional heat resistance (up to 500°F (260°C))

Applications
• High purity applications
• Flow monitoring systems
• DI water dispensers
• DI recirculators
• Heat exchangers
• Pure chemical dispensers
• Wetbench
• Gas transfer
• Food processing

Technical Specifications:
• Extruded from virgin HP PFA (High Purity Perfluoroalkoxy)
• Qualified with fittings from Parker Fluid System Connectors Division Fittings
• Working and burst pressures rated at 73°F /23°C
• All dimensions are nominal
• Random lengths, continuous lengths available as a custom run

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Maximum Operating Temperature	Minimum Operating Temperature	Media	Specifications Met	Color	Size	Weight	Compatible Fitting	Minimum Bend Radius	Tube Outside Diameter	Application	Tube Inside Diameter	Minimum Burst Pressure	Maximum Operating Pressure	Tube Material	Length per Package	Order Size	Product Type	Tube Wall Thickness	Standard Pack Qty (ft)	Tube Inside Diameter	Tube Outside Diameter	Division	Product Type
105-0125031-NT-100	Quote Required	Quote Required	TBD		500 °F	-100 °F	Chemicals	FDA 21 CFR 177.1550	Clear	1/8 inch	0.009 lb/ft	Compress-Align®	13 mm	0.125 inch	Flow Monitoring	0.064 inch	2000 psi	500 psi	Perfluoroalkoxy Alkanes (PFA) High Purity	30.4 m	1/8	Industrial Wall	0.031	100.0	0.064	0.125
105-0188031-NT-100	Quote Required	Quote Required	TBD		260 °C	-75 °C	Water	UL 94 V-0	Clear	3/16 inch	0.014 lb/ft	TrueSeal™	19 mm	4.8 mm	Semiconductor	3.2 mm	88 bar	22 bar	Perfluoroalkoxy Alkanes (PFA) High Purity	30.4 m	3/16	Industrial Wall	0.031	100.0	0.125	0.188
105-0250031-NT-100	Quote Required	Quote Required	TBD		260 °C	-75 °C	Water	ASTM D3307	Clear	1/4 inch	0.030 kg/m	TrueSeal™	1 inch	0.250 inch	Semiconductor	4.8 mm	63 bar	16 bar	Perfluoroalkoxy Alkanes (PFA) High Purity	100 ft	1/4	Industrial Wall	0.031	100.0	0.188	0.25
105-0250047-NT-100	Quote Required	Quote Required	TBD		500 °F	-100 °F	Chemicals	USP Class VI	Clear	1/4 inch	0.042 kg/m	TrueSeal™	1/2 inch	6.4 mm	Semiconductor	3.9 mm	1360 psi	23 bar	Perfluoroalkoxy Alkanes (PFA) High Purity	152.4 m	1/4	Heavy Wall	0.047	100.0	0.156	0.25
105-0250047-NT-500	Quote Required	Quote Required	TBD		260 °C	-100 °F	Water	USP Class VI	Clear	1/4 inch	0.028 lb/ft	Compress-Align®	13 mm	6.4 mm	Semiconductor	0.156 inch	1360 psi	340 psi	Perfluoroalkoxy Alkanes (PFA) High Purity	152.4 m	1/4	Heavy Wall	0.047	500.0	0.156	0.25
105-0250062-NT-100	Quote Required	Quote Required	TBD		260 °C	-75 °C	Chemicals	FDA 21 CFR 177.1550	Clear	1/4 inch	0.051 kg/m	Compress-Align®	5/8 inch	0.250 inch	Flow Monitoring	0.125 inch	1880 psi	32 bar	Perfluoroalkoxy Alkanes (PFA) High Purity	152.4 m	1/4	Heavy Wall	0.062	100.0	0.125	0.25
105-0250062-NT-500	Quote Required	Quote Required	TBD		500 °F	-75 °C	Water	USP Class VI	Clear	1/4 inch	0.051 kg/m	TrueSeal™	5/8 inch	6.4 mm	Flow Monitoring	0.125 inch	130 bar	32 bar	Perfluoroalkoxy Alkanes (PFA) High Purity	500 ft	1/4	Heavy Wall	0.062	500.0	0.125	0.25
105-0375031-NT-100	Quote Required	Quote Required	TBD		500	-75	Chemicals	ASTM D3307	Clear	3/8	0.031	Compression	3-1/2	0.375	Gas Transfer	7.9	560	140	Perfluoroalkoxy Alkanes (PFA) High Purity	30.4	3/8	Industrial Wall	0.031	100.0	0.312	0.375
105-0375062-NT-100	Quote Required	Quote Required	TBD		260 °C	-100 °F	Water	USP Class VI	Clear	3/8 inch	0.085 kg/m	TrueSeal™	29 mm	0.375 inch	Gas Transfer	0.250 inch	1160 psi	290 psi	Perfluoroalkoxy Alkanes (PFA) High Purity	30.4 m	3/8	Heavy Wall	0.062	100.0	0.25	0.375
105-0375062-NT-500	Quote Required	Quote Required	TBD		500 °F	-75 °C	Chemicals	FDA 21 CFR 177.1550	Clear	3/8 inch	0.085 kg/m	Compress-Align®	29 mm	9.5 mm	Gas Transfer	0.250 inch	80 bar	20 bar	Perfluoroalkoxy Alkanes (PFA) High Purity	500 ft	3/8	Heavy Wall	0.062	500.0	0.25	0.375
105-0500062-NT-100	Quote Required	Quote Required	TBD		260 °C	-75 °C	Chemicals	FDA 21 CFR 177.1550	Clear	1/2 inch	0.118 kg/m	Compression	57 mm	0.500 inch	Flow Monitoring	9.5 mm	840 psi	14 bar	Perfluoroalkoxy Alkanes (PFA) High Purity	30.4 m	1/2	Heavy Wall	0.062	100.0	0.375	0.5
105-0500062-NT-500	Quote Required	Quote Required	TBD		260 °C	-100 °F	Chemicals	FDA 21 CFR 177.1550	Clear	1/2 inch	0.079 lb/ft	Compress-Align®	2-1/4 inch	0.500 inch	Life Science	0.375 inch	840 psi	210 psi	Perfluoroalkoxy Alkanes (PFA) High Purity	500 ft	1/2	Heavy Wall	0.062	500.0	0.375	0.5
105-0750062-NT-100	Quote Required	Quote Required	TBD		260 °C	-75 °C	Water	FDA 21 CFR 177.1550	Clear	3/4 inch	0.079 lb/ft	Compression	108 mm	19 mm	Gas Transfer	15.9 mm	36 bar	130 psi	Perfluoroalkoxy Alkanes (PFA) High Purity	100 ft	3/4	Heavy Wall	0.062	100.0	0.625	0.75
105-0750062-NT-500	Quote Required	Quote Required	TBD		500 °F	-100 °F	Water	ASTM D3307	Clear	3/4 inch	0.186 kg/m	Compression	108 mm	19 mm	Gas Transfer	0.625 inch	520 psi	9 bar	Perfluoroalkoxy Alkanes (PFA) High Purity	500 ft	3/4	Heavy Wall	0.062	500.0	0.625	0.75
105-1000062-NT-100	Quote Required	Quote Required	TBD		260 °C	-100 °F	Chemicals	FDA 21 CFR 177.1550	Clear	1	0.170 lb/ft	Compression	8 inch	1.000 inch	Semiconductor	22 mm	25 bar	6 bar	Perfluoroalkoxy Alkanes (PFA) High Purity	100 ft	1.0	Heavy Wall	0.062	100.0	0.875	1.0
105-1000062-NT-500	Quote Required	Quote Required	TBD		260 °C	-100 °F	Water	FDA 21 CFR 177.1550	Clear	1	0.170 lb/ft	TrueSeal™	203 mm	1.000 inch	Semiconductor	22 mm	25 bar	90 psi	Perfluoroalkoxy Alkanes (PFA) High Purity	152.4 m	1.0	Heavy Wall	0.062	500.0	0.875	1.0
205-0300100-NT-100	Quote Required	Quote Required	TBD		260	-100	Chemicals	ASTM D3307	Clear	3	0.009	Metric Compression	1/4	3	Gas Transfer	1	1560	390	Perfluoroalkoxy Alkanes (PFA) High Purity	30.4	3MM	Metric	1.0	100.0	1.0	3.0	Parflex Division	Metric
205-0600100-NT-100	Quote Required	Quote Required	TBD		260 °C	-100 °F	Water	FDA 21 CFR 177.1550	Clear	6 mm	0.034 kg/m	TrueSeal™	22 mm	6 mm	Semiconductor	4 mm	50 bar	180 psi	Perfluoroalkoxy Alkanes (PFA) High Purity	30.4 m	6MM	Metric	1.0	100.0	4.0	6.0		Metric
205-0800100-NT-100	Quote Required	Quote Required	$4.59	FT	500 °F	-75 °C	Water	ASTM D3307	Clear	8 mm	0.047 lb/ft	Metric Compression	35 mm	8 mm	Semiconductor	0.236 inch	520 psi	130 psi	Perfluoroalkoxy Alkanes (PFA) High Purity	30.4 m	8MM	Metric	1.0	100.0	6.0	8.0		Metric
205-1000100-NT-100	Quote Required	Quote Required	TBD		260 °C	-100 °F	Chemicals	ASTM D3307	Clear	10 mm	0.061 lb/ft	Metric Compression	51 mm	10 mm	Gas Transfer	0.315 inch	400 psi	100 psi	Perfluoroalkoxy Alkanes (PFA) High Purity	100 ft	10MM	Metric	1.0	100.0	8.0	10.0		Metric
