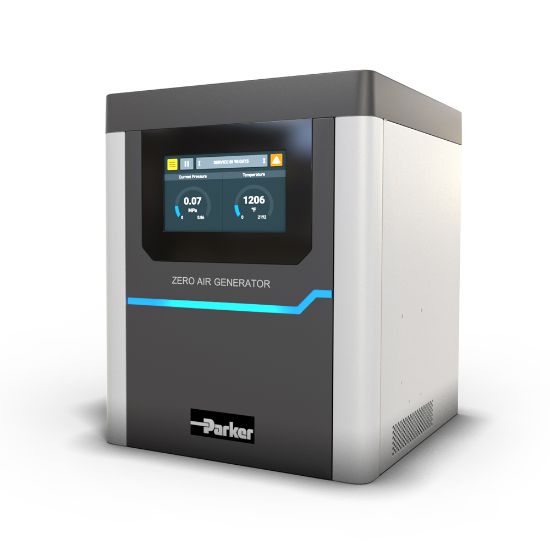

Parker ZAG-7LNA - ChromGas ZAG - Zero Air Generators for Gas Chromatography

Parker’s ChromGas ZAG generators provide a continuous stream of hydrocarbon free 'zero' air from an external dry compressed air source.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ZAG-7LNA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Gas Type Generated	Zero Air	Depth	407 mm
Inlet Pressure Rating	2.8 to 8.6 barg	Specifications Met	CSA
Electrical Requirements	YES	Height	437 mm
Outlet Port Size	1/4 inch	Application	Analytical Laboratory
Technology	Filtration	Division	Industrial Gas Filtration and Generation Division
Width	13.5 inch	Weight	14.2 kg
Brand	Parker	Compressor Included	No
Product Type	Zero Air Gas Generator	Industry	Chemical Processing
Ambient Temperature	16 to 38 °C	Gas Purity	< 0.05
Port Type	Female NPT	Inlet Port Size	1/4 inch
Division	Industrial Gas Filtration and Generation Division	Flow Rate	7 L/min
Input Voltage	120 VAC 60Hz	Accessories Included	NA Cordset x1
