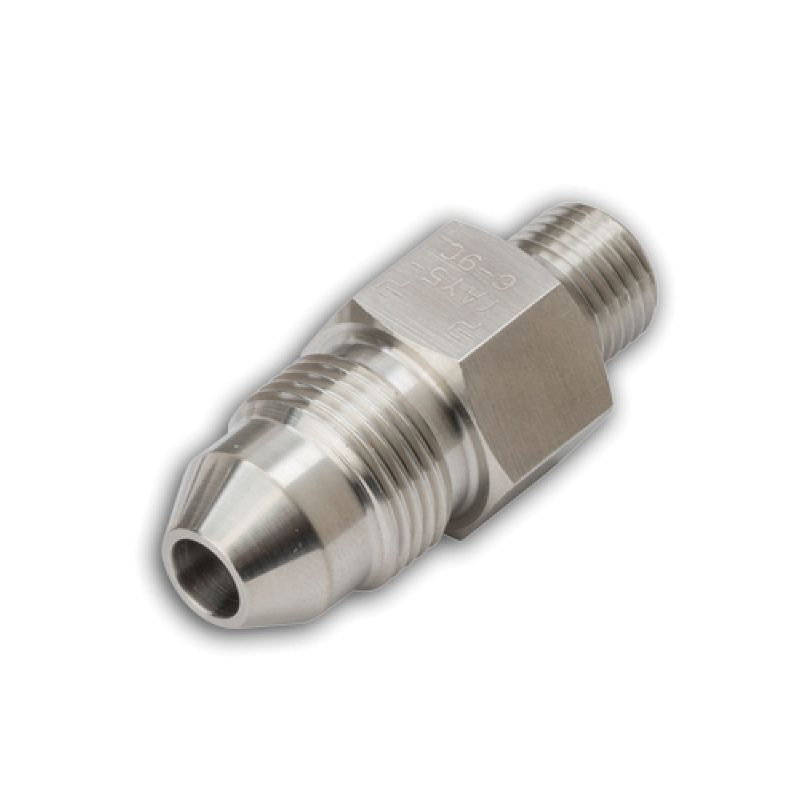

Parker YAY5-6-6C - Type "M" Fitting Adapters

These fitting adapters connect to Type "M" Swivel end fittings and seal with a 58° cone.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. YAY5-6-6C

$151.03

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	9/16"-18 inch
Division	Parflex Division	Connection 2 Type	Medium Pressure
Materials of Construction	Stainless Steel AISI 316	Connection 1 Type	Type "M"
Connection 1 Size	9/16"-18 inch	Maximum Operating Pressure	20000 psi
Hex Size	16 mm	Overall Length	41.4 mm
Connection 2 Type	Male Medium Pressure	Connection 1 Thread Size	9/16"-18 UNF
Connection 1 Type	Male Type "M"	Connection 2 Thread Size	9/16"-18 UNF

Product resources

Literature and Reference Materials

Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900 (PDF)
