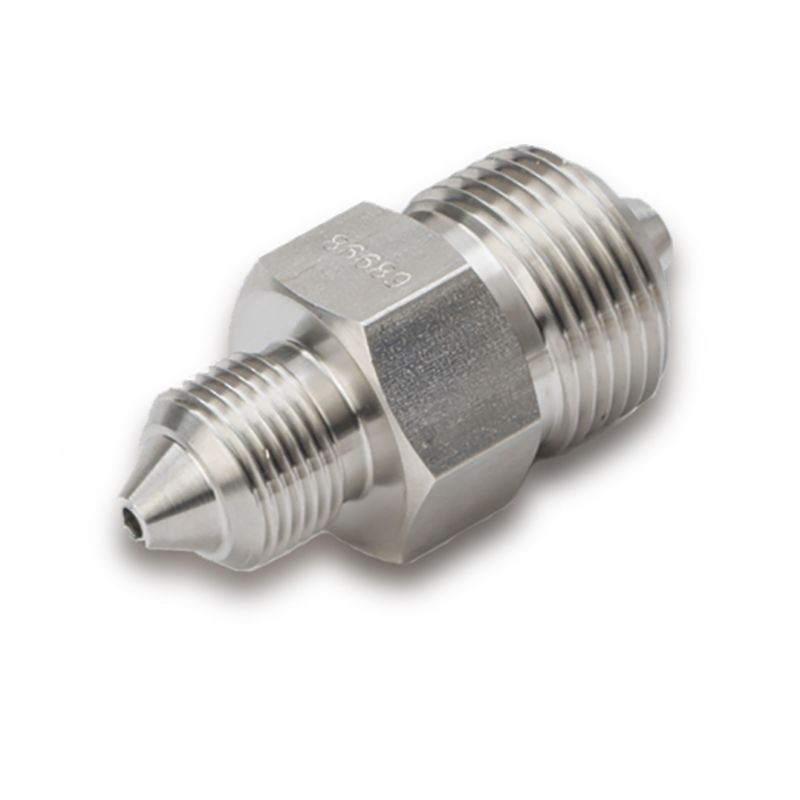

Parker Y6Y6-4-4C - High Pressure Adapters

Stainless steel adapters with a 58/60 degree coned and threaded tubing design and maximum working pressure ratings up to 60,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. Y6Y6-4-4C

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Overall Length	42.672 mm	Maximum Operating Pressure	60000 psi
Connection 1 Type	Male	Hex Size	15.748 mm
Connection 1 Size	9/16"-18 inch	Connection 2 Size	9/16"-18 inch
Connection 2 Type	UNF Thread	Materials of Construction	Stainless Steel AISI 316
Division	Parflex Division	Connection 1 Type	Male High Pressure
Connection 2 Thread Size	9/16"-18 UNF	Connection 2 Type	Male High Pressure
Connection 1 Thread Size	9/16"-18 UNF
