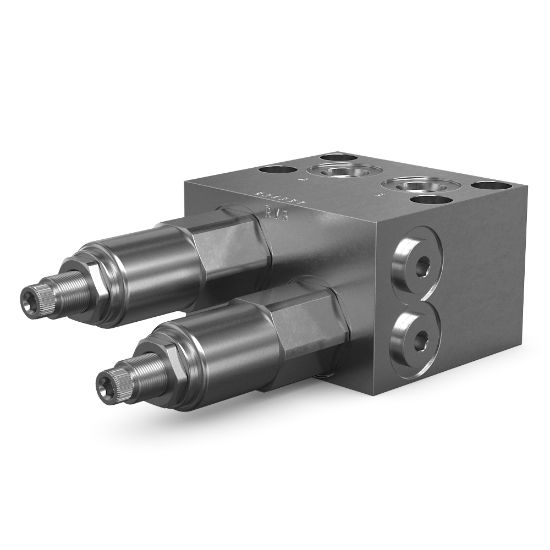

Picture of Parker XRDH103S30N-8T - Direct Acting Cross-Over Relief Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker XRDH103S30N-8T - Direct Acting Cross-Over Relief Valves

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. XRDH103S30N-8T
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate20Seal MaterialNitrile
Body MaterialSteelMinimum Operating Temperature-30
DivisionHydraulic Systems DivisionMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Cavity Sizen/aMaximum Operating Pressure5500
Actuation TypePressure SensingMaximum Pressure Setting3000
Operation TypeAutomaticAdjustment MechanismScrew
FunctionBi-directionalConfigurationDual Cross-over Relief
Cracking Pressuren/aMaximum Flow Rate20
Weight4.5Maximum Inlet Pressure Rating5500
For Fluid TypeMineral-based or synthetic hydraulic fluidsValve MaterialAll parts steel. All operating parts hardened steel
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Operating Temperature-30 to +250
Maximum Operating Temperature+250Installation TorqueN/A
Port Thread SizeSAE-8Standard Setting Pressure1500
Leak Rate5 @ 75% Crack PressureReseat Pressure85% of pressure setting
Pressure Control Range500-3000Pressure Control Sensitivity375 per turn
Maximum Tank Pressure5500Mounting TypeMotor Mounted
Seal MaterialNitrileAdjustment MechanismScrew
Cracking PressureN/AFlow Rate20 GAL/MIN, 75 L/MIN
Maximum Inlet Pressure Rating5500 PSI, 380 BARPressure Control Range500-3000 PSI, 34.5-210 BAR
Standard Setting Pressure1500 PSI, 103.5 BARMounting TypeMotor Mounted
