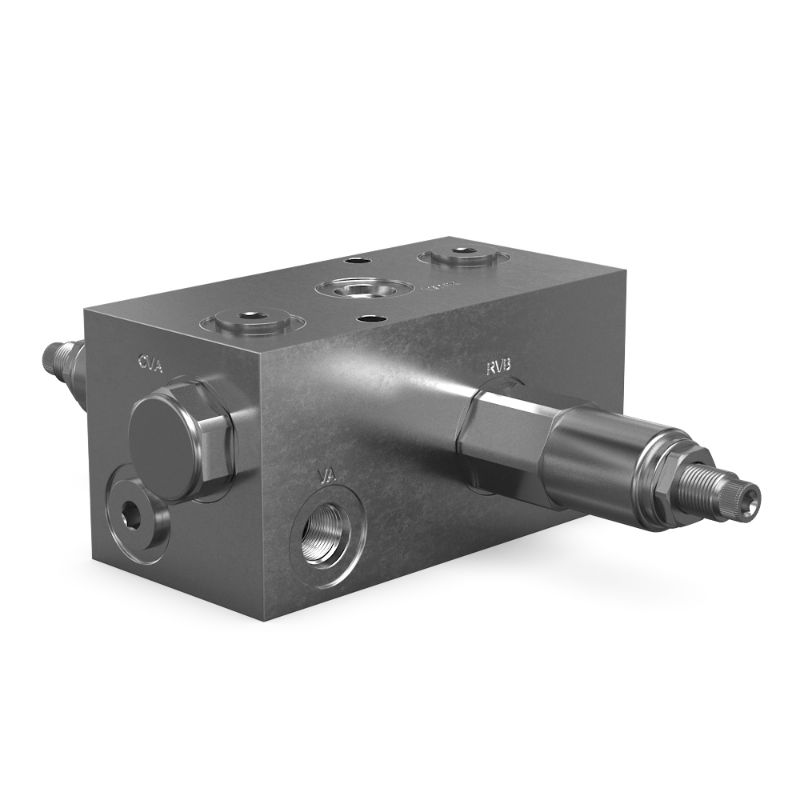

Parker XRDH102F10P50-8T - Direct Acting Cross-Over Relief Valves

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. XRDH102F10P50-8T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-35	Body Material	Steel
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Cavity Size	n/a	Weight	4
Maximum Operating Pressure	5500	Actuation Type	Pressure Sensing
Operation Type	Automatic	Function	Bi-directional
Pressure Control Sensitivity	n/a	Seal Material	D-Ring (Standard)
Maximum Flow Rate	16	Flow Rate	16
Adjustment Mechanism	Fixed	Maximum Inlet Pressure Rating	5500
Mounting Type	Line Mounted	Cracking Pressure	50
Maximum Operating Temperature	+200	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-35 to +200	Installation Torque	N/A
Port Thread Size	SAE-8	Maximum Pressure Setting	1000
Standard Setting Pressure	500	Pressure Control Range	100-1000
Leak Rate	5 @ 75% Crack Pressure	Reseat Pressure	85% of pressure setting
Configuration	Dual Cross-Over Relief w/Anti-Cavitation Checks	Maximum Tank Pressure	5500
Seal Material	D-Ring (Standard)	Adjustment Mechanism	Fixed
Flow Rate	16 GAL/MIN, 60 L/MIN	Cracking Pressure	50 PSI, 3.5 BAR
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR	Mounting Type	Line Mounted
Pressure Control Range	100-1000 PSI, 6.9-69 BAR	Standard Setting Pressure	500 PSI, 34.5 BAR
