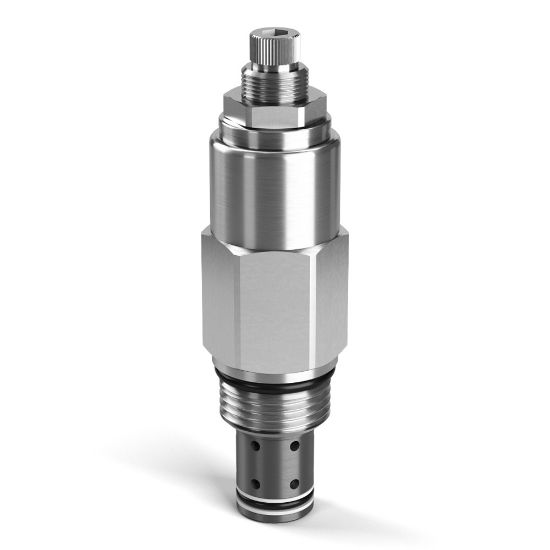

Picture of Parker XR101F30V - Direct Acting Cross-Over Relief Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker XR101F30V - Direct Acting Cross-Over Relief Valves

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. XR101F30V
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Adjustment MechanismFixedMaximum Pressure Setting3000
Maximum Operating Pressure3500Valve MaterialAll parts steel. All operating parts hardened steel
Installation Torque16Standard Setting Pressure2500
Maximum Flow Rate16Body Materialn/a
Flow Rate16Pressure Control Range1500-3000
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Cracking Pressuren/a
Cavity SizeC10-2Reseat Pressure80% of pressure setting
Port Thread Sizen/aWeight0.58
Operation TypeAutomaticMaximum Operating Temperature+400
Minimum Operating Temperature-15ConfigurationDual Cross-over Relief
Actuation TypePressure SensingOperating Temperature-15 to +400
Seal MaterialFluorocarbonDivisionHydraulic Systems Division
FunctionBi-directionalMounting TypeScrew in cartridge valve
For Fluid TypeMineral-based or synthetic hydraulic fluidsMaximum Inlet Pressure Rating3500
Maximum Tank Pressure3500Leak Rate10 @ 75% Crack Pressure
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Pressure Control Sensitivityn/a
Flow Rate16 GAL/MIN, 60 L/MINPressure Control Range1500-3000 PSI, 103-210 BAR
Adjustment MechanismFixedCracking PressureN/A
Standard Setting Pressure2500 PSI, 172 BARMounting TypeScrew in cartridge valve
Seal MaterialFluorocarbonMaximum Inlet Pressure Rating3500 PSI, 245 BAR
