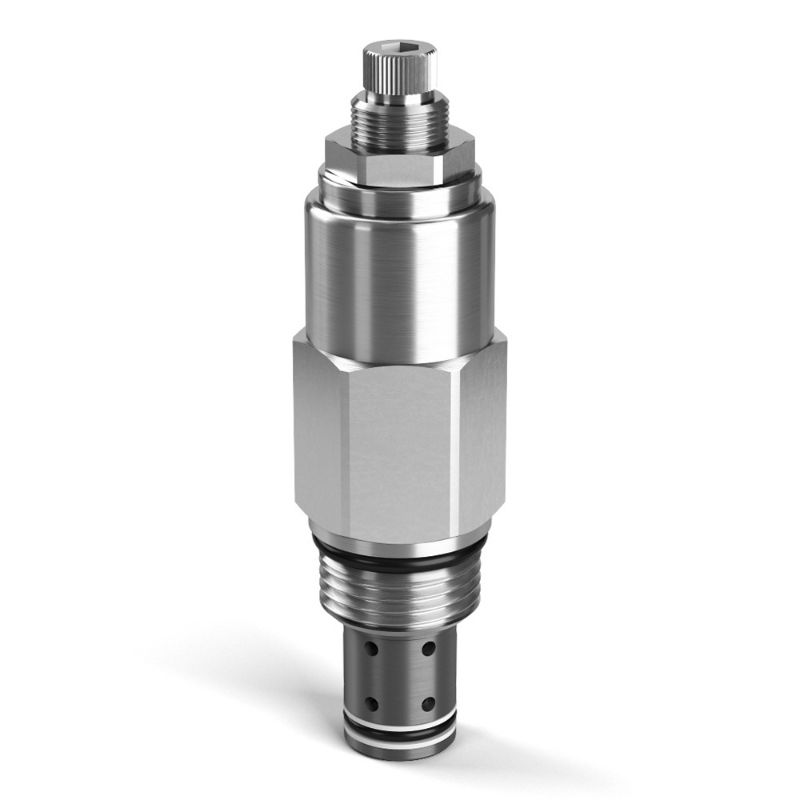

Parker XR101F20 - Direct Acting Cross-Over Relief Valves

Cross-Over Relief cartridge valves provide pressure protection to hydraulic motors, cylinders and rotary actuators up to 120 lpm (32 gpm) and 350 bar (5000 psi). Available in single or dual cartridge, in-line, manifold, or motor mount configurations.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. XR101F20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	16	Operating Temperature	-30 to +250
Cracking Pressure	n/a	Cavity Size	C10-2
Operation Type	Automatic	Pressure Control Sensitivity	n/a
Reseat Pressure	80% of pressure setting	Port Thread Size	n/a
Weight	0.58	Maximum Inlet Pressure Rating	3500
Standard Setting Pressure	1000	Configuration	Dual Cross-over Relief
Actuation Type	Pressure Sensing	Function	Bi-directional
Division	Hydraulic Systems Division	Mounting Type	Screw in cartridge valve
Seal Material	Nitrile	Minimum Operating Temperature	-30
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Leak Rate	10 @ 75% Crack Pressure
Maximum Tank Pressure	3500	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Pressure Setting	2000	Pressure Control Range	100-2000
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Pressure	3500
Installation Torque	16	Body Material	n/a
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	16
Adjustment Mechanism	Fixed	Maximum Operating Temperature	+250
Seal Material	Nitrile	Mounting Type	Screw in cartridge valve
Pressure Control Range	100-2000 PSI, 6.9-138 BAR	Maximum Inlet Pressure Rating	3500 PSI, 245 BAR
Adjustment Mechanism	Fixed	Standard Setting Pressure	1000 PSI, 69 BAR
Flow Rate	16 GAL/MIN, 60 L/MIN	Cracking Pressure	N/A
