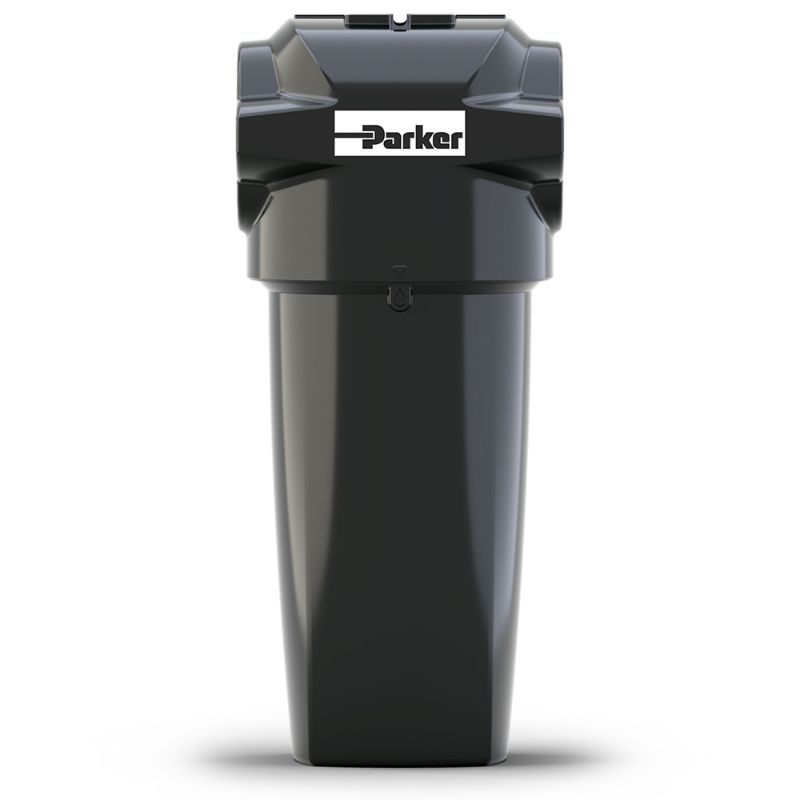

Parker WSPX035GNFX - OIL-X Grade WS Compressed Air Water Separator (For Pressures Up To 16 barg)

Die cast aluminium water separators for the efficient removal of bulk liquid contamination from a compressed air supply, providing flow rates up to 3600 m³/h @ 7 bar g.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. WSPX035GNFX

$933.43

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Operating Pressure	1.5 to 16 barg
Brand	Parker	Materials of Construction	Die Cast Aluminium
Filter Type	Water Separator	Application	Compressed Air and Nitrogen Gas Applications
Operating Temperature	35 to 149 °F	Division	Gas Separation and Filtration Division EMEA
Depth	157.0 mm	Product Type	Compressed Air Filter
Product Series	OIL-X Grade WS	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Weight	15.14 lb	Pressure Differential	0.8 psi Initial Saturated, 100% Flow
Division	Gas Separation and Filtration Division EMEA	Micron Rating	n/a
Specifications Met	Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II	Technology	Filtration
Height	440.0 mm	Width	6.46 inch
Drain Option	Automatic Float	Connection Type	NPT
Maximum Flow Rate	1260 m³/h @ 7 barg (742 cfm @ 102 psig)	Electrical Requirements	N/A
Port Size	1½ inch

Product resources

Compliance, Certifications & Safety

Guarantee - OIL-X Filter Range Compressed Air Purity & Die Cast Filter Housing (PDF)

Literature and Reference Materials
