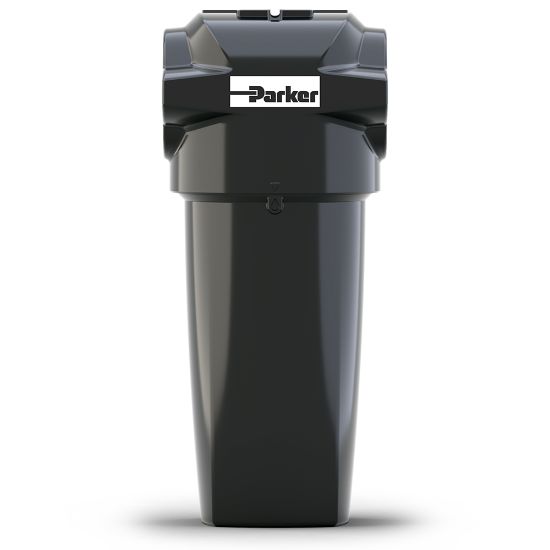

Parker WSPX030GNFX - OIL-X Grade WS Compressed Air Water Separator (For Pressures Up To 16 barg)

Die cast aluminium water separators for the efficient removal of bulk liquid contamination from a compressed air supply, providing flow rates up to 3600 m³/h @ 7 bar g.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. WSPX030GNFX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Height	368.0 mm	Pressure Differential	82.0 mbar Initial Saturated, 100% Flow
Operating Temperature	2 to 60 °C	Division	Gas Separation and Filtration Division EMEA
Weight	2.66 kg	Materials of Construction	Die Cast Aluminium
Depth	4.53 inch	Division	Gas Separation and Filtration Division EMEA
Operating Pressure	22 to 232 psig	Application	Compressed Air and Nitrogen Gas Applications
Product Type	Compressed Air Filter	Product Series	OIL-X Grade WS
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Brand	Parker
Filter Type	Water Separator	Micron Rating	n/a
Technology	Filtration	Specifications Met	Fully tested - In accordance with ISO12500-4 & ISO8573-9 for liquid water. <br/><br/>Separation performance independently validated - by Lloyds Register.<br/><br/>PED 2014/68/EU Fluid Group II
Width	4.72 inch	Port Size	1½ inch
Drain Option	Automatic Float	Electrical Requirements	N/A
Connection Type	NPT	Maximum Flow Rate	396 m³/h @ 7 barg (233 cfm @ 102 psig)
