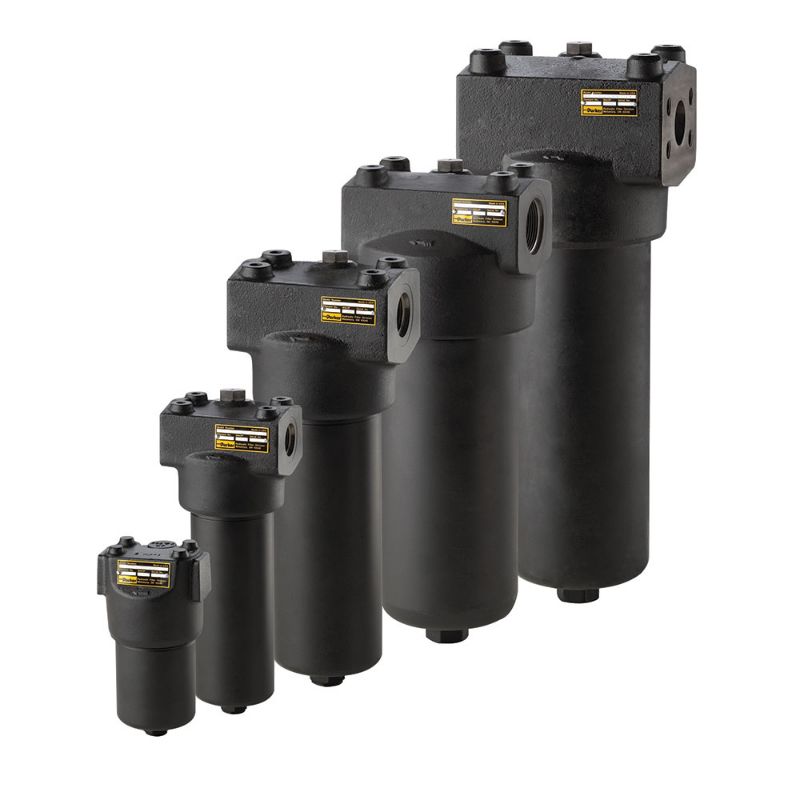

Parker WPF305QEBM2KS161 - High Pressure Inline Filter WPF Series

The new industry standard in high pressure hydraulic filtration incorporating advanced features designed to improve system reliability. Allowable operating pressure of 7000 PSI/483 Bar and capable of flows up to 137 GPM/520 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	13 In Stock

Brand Parker

Part No. WPF305QEBM2KS161

$955.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Rating	483 bar
Mounting Style	Inline	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Port Type	SAE-16	Flow Rate	151.0 L/min
Weight	9.5 kg	Compatible Element	941036Q
Seal Material	Nitrile	Product Type	Hydraulic Filter
Product Style	Hydraulic Filter	Bypass Valve Pressure Rating	50 psi
Housing Material	SG Iron head and forged steel bowl	Indicator Pressure Setting	7.7 bar
Maximum Operating Temperature	135.0 °C	Filter Element Type	Coreless
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Indicator Type	50 psi visual
Options	Bypass	Flow Rate	40 GPM (151 LPM)
Filter Element Type	05Q Microglass	Options	Bypass
Port Connection Type	SAE-16	Indicator Type	50 psi visual
Seal Material	Nitrile	Bypass Valve Pressure Rating	50 psi (3.5 bar)
