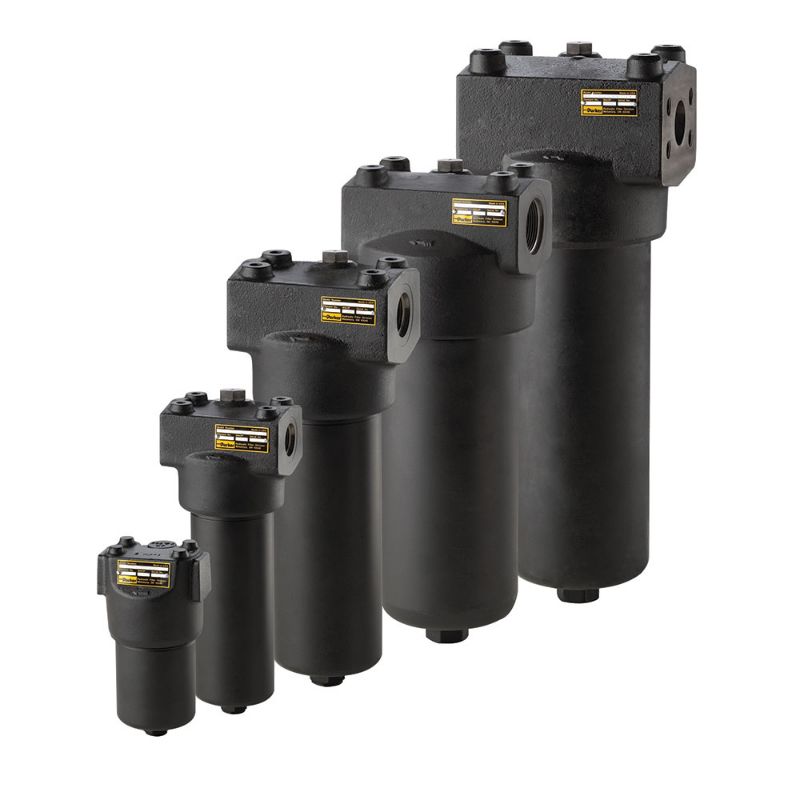

Parker WPF102QEVGSKS081 - High Pressure Inline Filter WPF Series

The new industry standard in high pressure hydraulic filtration incorporating advanced features designed to improve system reliability. Allowable operating pressure of 7000 PSI/483 Bar and capable of flows up to 137 GPM/520 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. WPF102QEVGSKS081

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Style	Hydraulic Filter	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Filter Element Type	Coreless	Indicator Pressure Setting	40 psi
Pressure Rating	483 bar	Indicator Type	50 psi electrical reed switch
Mounting Style	Inline	Product Type	Hydraulic Filter
Flow Rate	37.8 L/min	Options	Bypass
Port Type	SAE-8	Maximum Operating Temperature	135.0 °C
Housing Material	SG Iron head and forged steel bowl	Seal Material	Fluorocarbon
Compatible Element	941029Q	Bypass Valve Pressure Rating	3.5 bar
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Weight	4.1 kg
Options	Bypass	Flow Rate	10 gpm (37.8 lpm)
Filter Element Type	02Q Microglass	Indicator Type	50 psi electrical reed switch
Bypass Valve Pressure Rating	50 psi (3.5 bar)	Port Connection Type	SAE-8
Seal Material	Fluorocarbon
