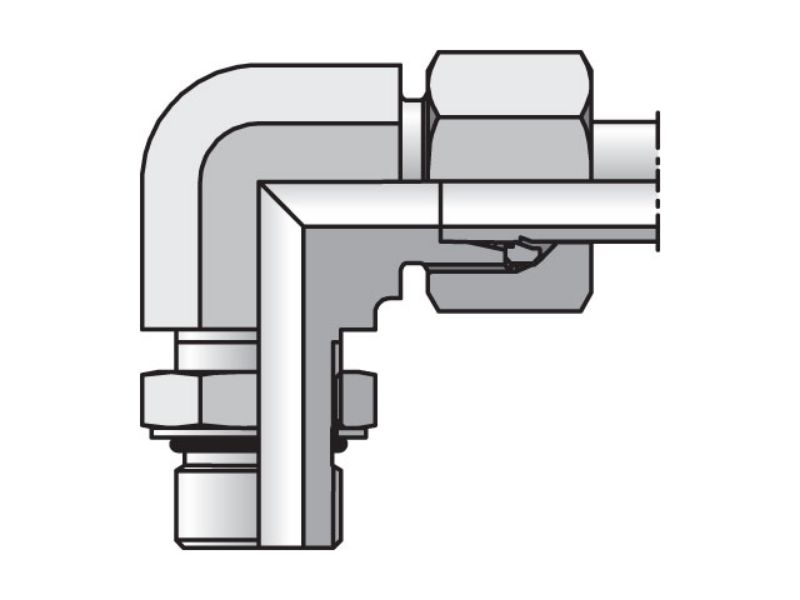

Parker WEE06L7/16UNFCF - EO/EO-2 90° Elbow, Adjustable - WEE-UNF

EO/EO-2 90° Elbow, Adjustable - 24° Flareless / SAE-ORB

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. WEE06L7/16UNFCF

$33.78

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Rating	315 bar
End 1	6 mm	O-Ring/Seal Material	Nitrile
UOM	EA	Pressure Series	Light
Material	Steel	End 2	7/16-20 UN/UNF-2A
Pkg Qty	20	Configuration Sub-Type	Adjustable - 24° Flareless / SAE-ORB
End 1	6 mm	O-Ring/Seal Material	Nitrile
Material	Steel	End 2	7/16-20 UN/UNF-2A
Parker Division	Tube Fitting	End 1 Type	mm
Trade Name	EO/EO-2	Series	EO
Pressure Series	Light	End 2 Type	UN/UNF-2A
Configuration Type	90° Elbow	Tube Fitting/Adapter Type	Bite Type, EO/EO-2 Flareless
Inch/Metric	Metric	Parker Group	Fluid Connector
Pressure Rating	315 bar
