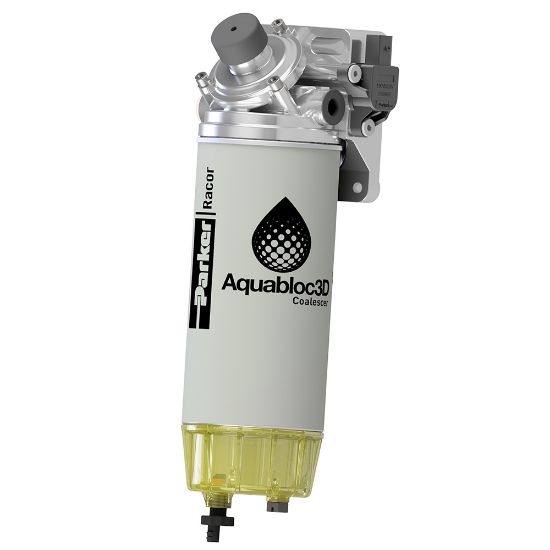

Parker WBH4160RD2410-M18-E6 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. WBH4160RD2410-M18-E6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Clean Pressure Drop	0.87 psi	Division	Engine Mobile Original Equipment Division
Head Material	Aluminium Alloy	Filter Element Type	10 Micron Aquabloc
Brand	Racor	Depth	130 mm
Operating Temperature	-40 to 250 °F	Compatible Element	R160-3D-RCR-01
Number of Ports	2 Inlet / 2 Outlet	Height	400 mm
Weight	0.75 kg	For Fluid Type	Diesel
Product Type	Fuel Filter	Maximum Operating Pressure	45 psi
Maximum Fluid Temperature	88 °C	Width	142 mm
Micron Rating	98% @ 10 Micron	Part Type	Filter Assembly
Flow Rate	170 gph (640 lph)	Port Size	M18 1.5
Heater Power Rating	190W Daimler Heater	Bowl Type	Clear Engineering Plastic
Product Series	Diesel Spin-on 4PM	Location	EMEA region only
Integral Primer Pump Included	Button Priming Pump (Diesel)

Product resources

Literature and Reference Materials
