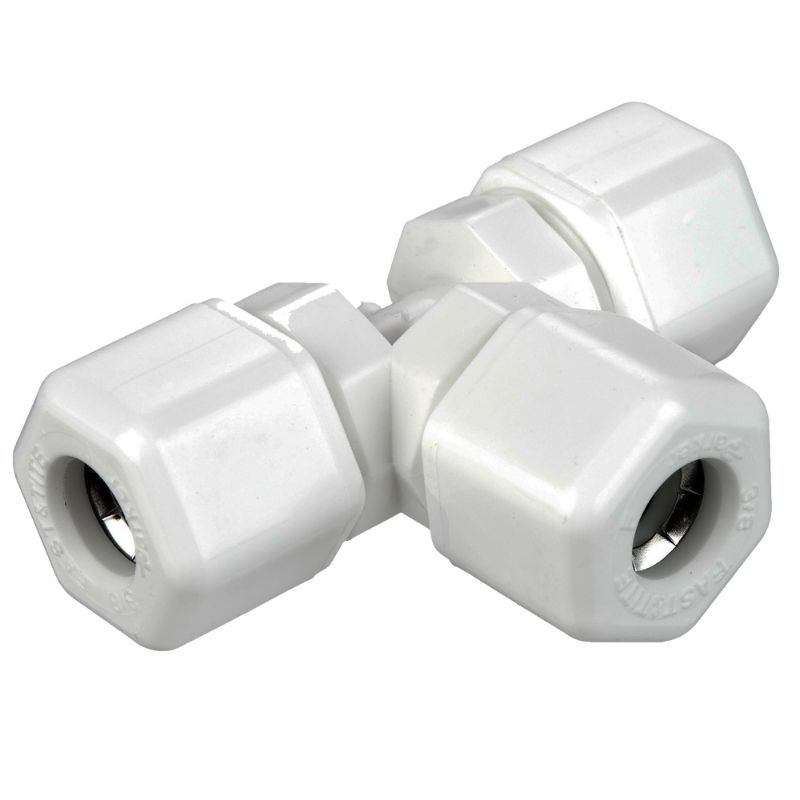

Parker W8TU8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

AFP Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. W8TU8

$7.18/each

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Filtration, Purification, Dispensing
Minimum Operating Temperature	0 °F	Tube Material	Thermoplastic, Glass, Soft Metal
Specifications Met	FDA, NSF-51	Media	Water, Air, Other Compatible Fluids
Body Material	Polypropylene	Division	Fluid System Connectors Division
O-Ring Material	Nitrile	Maximum Operating Temperature	100 °C
Maximum Operating Pressure	10 bar	Gripping Ring Material	302 Stainless Steel
Connection 2 Tube Outside Diameter	1/2" (O.D.)	Body Material	White Polypropylene
Connection 2 Type	Compression	Configuration	Tube to Tube
Connection 1 Type	Compression	Shape	Tee
Connection 1 Tube Outside Diameter	1/2" (O.D.)
