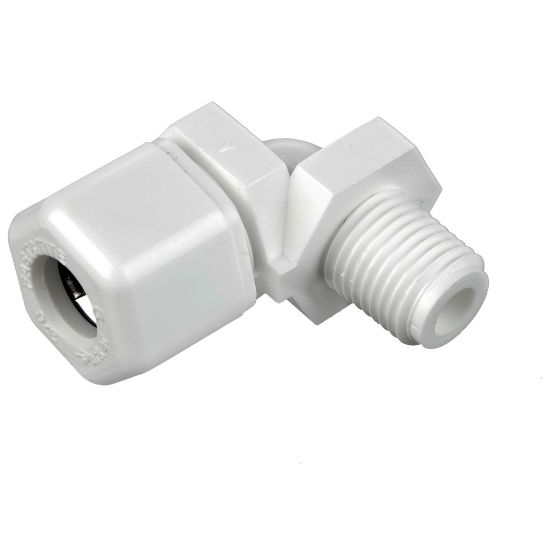

Parker W8ME12 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W8ME12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	For Fluid Type	Air
Tube Material	Soft Metal	Maximum Operating Pressure	150 psi
Seal Material	Nitrile (O-Ring)	Specifications Met	FDA
Minimum Operating Temperature	-18 °C	Application	Purification
Division	Fluid System Connectors Division	Gripping Ring Material	Stainless Steel AISI 302
Body Material	Polypropylene	Shape	Elbow 90°
Body Material	White Polypropylene	Connection 2 Type	NPTF
Connection 2 Thread Size	3/4"	Configuration	Tube to Pipe
Connection 1 Type	Compression	Connection 1 Tube Outside Diameter	1/2" (O.D.)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
