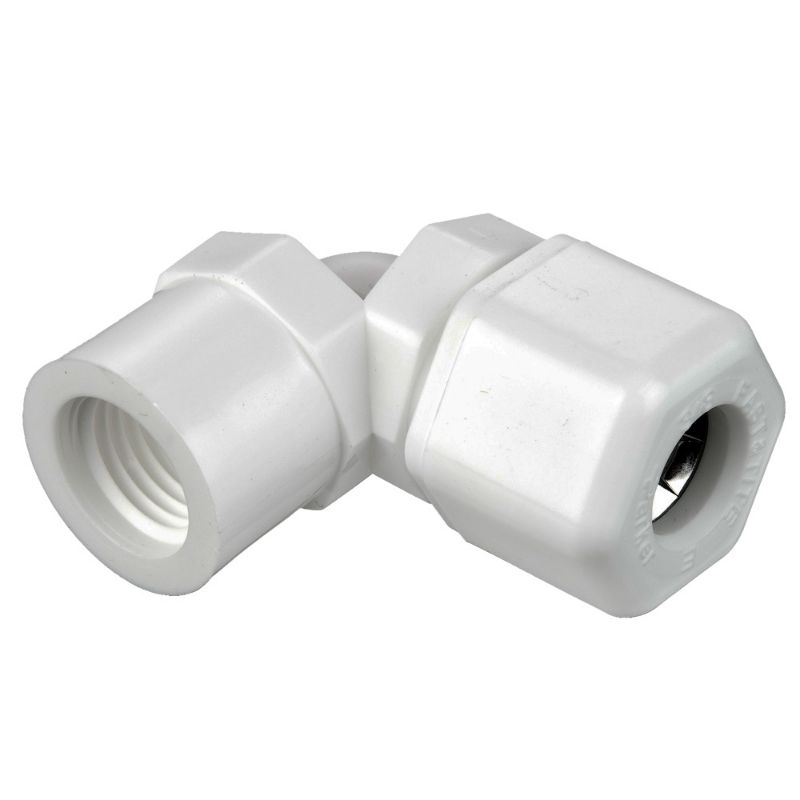

Picture of Parker W8FE6 - Compression Style Plastic Fittings, Fast-Tite

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker W8FE6 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. W8FE6
$5.63
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASpecifications MetFDA
Minimum Operating Temperature-18 °CDivisionFluid System Connectors Division
Tube MaterialGlassApplicationPurification
Gripping Ring MaterialStainless Steel AISI 302For Fluid TypeWater
Maximum Operating Pressure150 psiSeal MaterialNitrile (O-Ring)
Maximum Operating Temperature212 °FBody MaterialPolypropylene
Connection 1 Tube Outside Diameter1/2" (O.D.)Connection 2 Thread Size3/8"
Connection 1 TypeCompressionConnection 2 TypeNPTF
ShapeElbow 90°ConfigurationTube to Female Pipe
Body MaterialWhite Polypropylene
