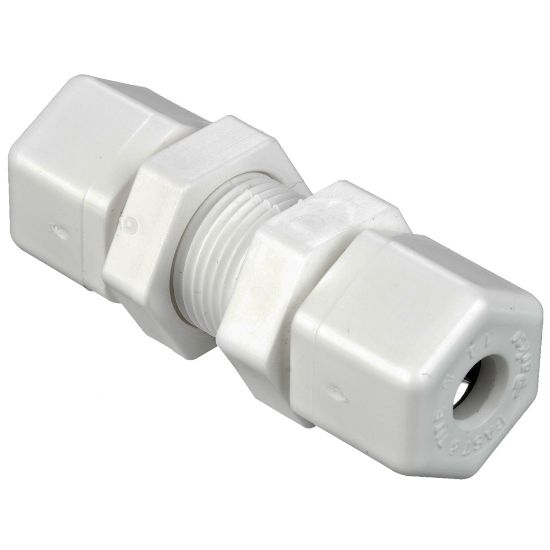

Parker W8BU8 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W8BU8

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	FDA, NSF-51	Application	Filtration, Purification, Dispensing
Maximum Operating Pressure	150 psi	Tube Material	Thermoplastic, Glass, Soft Metal
Division	Fluid System Connectors Division	Media	Water, Air, Other Compatible Fluids
Maximum Operating Temperature	100 °C	Gripping Ring Material	302 Stainless Steel
O-Ring Material	Nitrile	Minimum Operating Temperature	-18 °C
Body Material	Polypropylene	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	1/2" (O.D.)	Configuration	Tube to Tube
Connection 2 Tube Outside Diameter	1/2" (O.D.)	Body Material	White Polypropylene
Product Style	Bulkhead	Connection 2 Type	Compression

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
