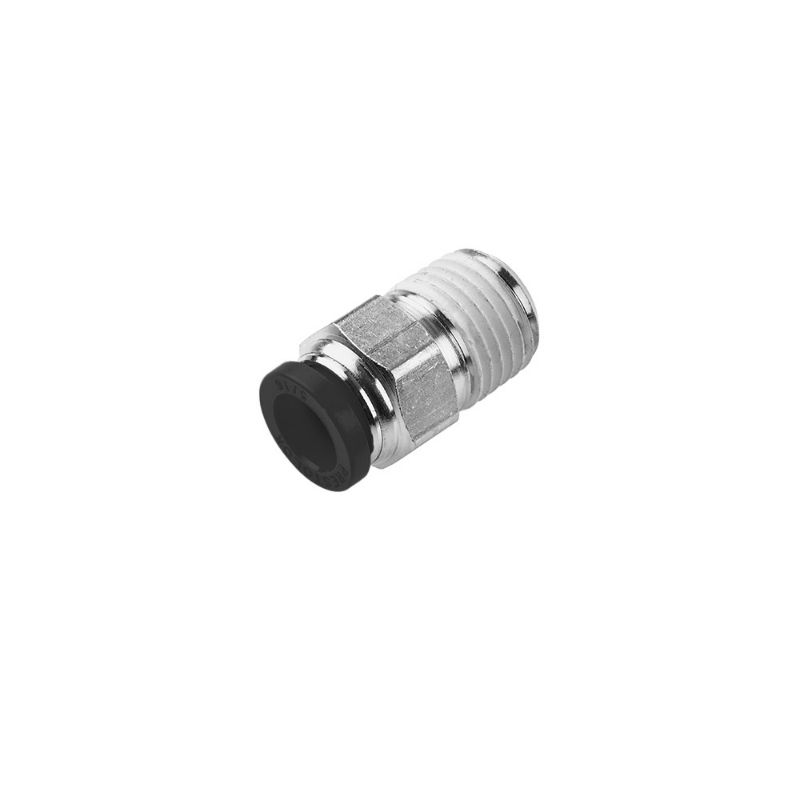

Parker W68PLP-5/32-1 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:	Quote Required
Partner Available:	259 In Stock

Brand Parker

Part No. W68PLP-5/32-1

$7.62/each

Products specifications

Attribute name	Attribute value
UOM	EA	Region of Origin	United States
Maximum Operating Temperature	93.3 °C	Technology	Pneumatics
Hex Size	3/8 inch	Vacuum Pressure Rating	28 Inch-Hg
Materials of Construction	PVDF (Button)	Division	Fluid System Connectors Division
For Fluid Type	Inert Gases	Dimensional Weight	0.2179 lb
Seal Material	Nitrile	Specifications Met	UL 94 V-0
Tube Material	Polyethylene	Gripping Ring Material	Stainless Steel
Maximum Operating Pressure	300 psi	Industry	Semiconductor
Brand	Parker	Minimum Operating Temperature	-17.7 °C
Body Material	Brass, Nickel-plated	Division	Fluid System Connectors Division
Application	Vacuum	Product Style	Connector
Configuration	Tube to Pipe	Connection 1 Type	Push-to-Connect
Connection 1 Size	5/32"	Connection 2 Size	1/16"
Connection 2 Type	Male NPTF
