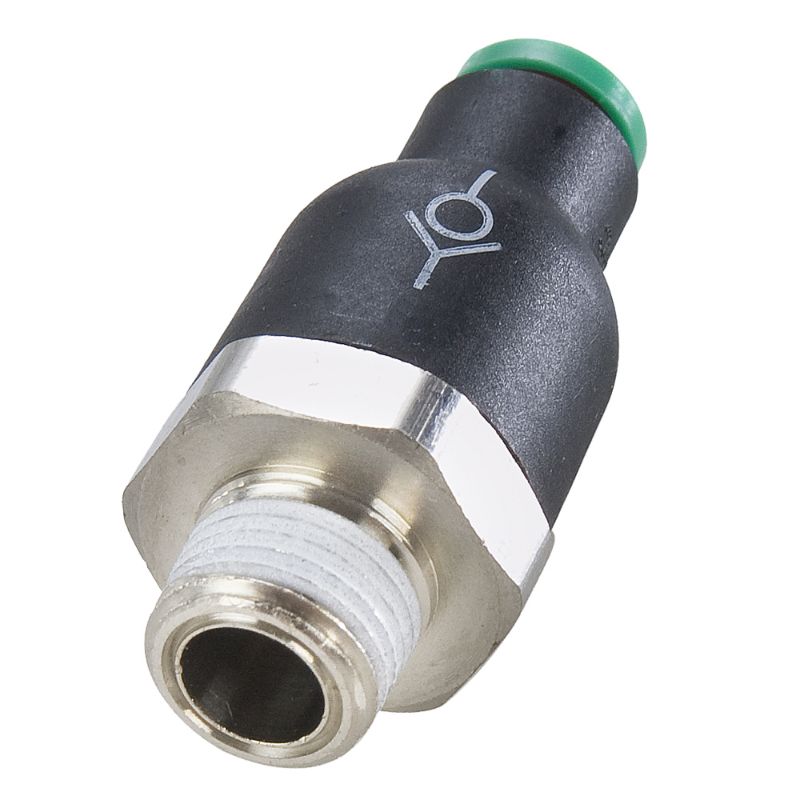

Parker W68PLCKI-6-6 - Check Valves

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. W68PLCKI-6-6

$48.79

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	145 psi
Connection 1 Tube Outside Diameter	3/8 inch	Maximum Operating Temperature	65 °C
Product Style	Tube to Pipe	Valve Configuration	One Way
Gripping Ring Material	Stainless Steel	Connection 1 Size	Push-to-connect
Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging	Connection 2 Tube Outside Diameter	N/A
Cracking Pressure	7 psi	Media	Compressed Air
Shape	Threaded	Connection 2 Thread Size	N/A
Body Material	Nylon	Connection 1 Thread Size	N/A
Division	Fluid System Connectors Division	Connection Type	NPT
Connection 2 Size	NPT	Thread Material	Plated Brass
Seal Material	Nitrile	Minimum Operating Temperature	34 °F

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
