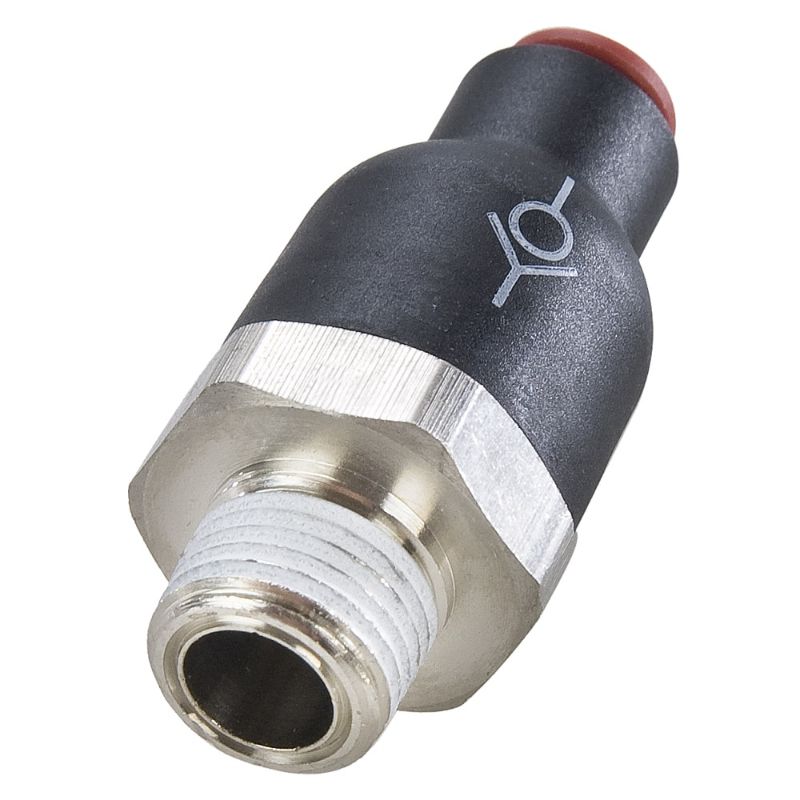

Parker W68PLCK-6-4 - Check Valves

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Availability:	Quote Required
Partner Available:	5 In Stock

Brand Parker

Part No. W68PLCK-6-4

$41.84

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Material	Plated Brass
Seal Material	Nitrile	Connection Type	NPT
Connection 2 Size	NPT	Connection 2 Tube Outside Diameter	N/A
Gripping Ring Material	Stainless Steel	Connection 1 Thread Size	N/A
Division	Fluid System Connectors Division	Body Material	Nylon
Connection 2 Thread Size	1/4 inch	Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging
Maximum Operating Pressure	145 psi	Connection 1 Tube Outside Diameter	3/8 inch
Valve Configuration	One Way	Product Style	Tube to Pipe
Cracking Pressure	7 psi	Media	Compressed Air
Maximum Operating Temperature	150 °F	Shape	Threaded
Minimum Operating Temperature	1 °C	Connection 1 Size	Push-to-connect
