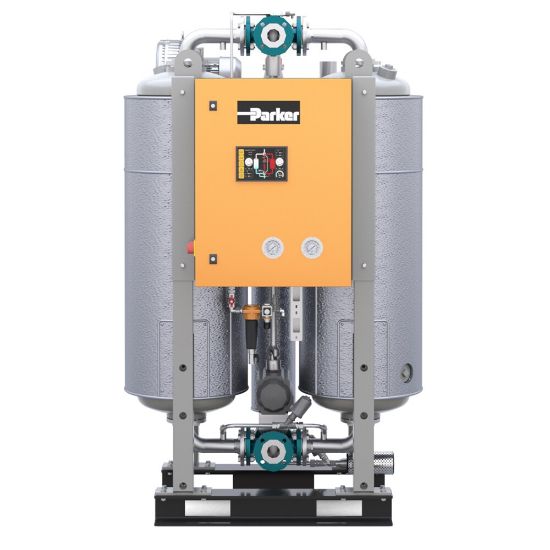

Picture of Parker W60/11VM5-F400CT - WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker W60/11VM5-F400CT - WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer

Low energy large flow industrial compressed air dryers providing flow rates up to 7300m³/h @ 7 barg with a dew point of -40°C (-20°C and -70°C options). Energy savings of up to 25%.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. W60/11VM5-F400CT
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Product TypeCompressed Air DryerHeight80 inch
Depth1219.0 mmOperating Pressure58 to 145 psig
BrandParkerSpecifications MetPED 2014/68/EU Fluid Group II
Product SeriesWVM 5Ambient Temperature40.0 °C Maximum
Ingress Protection RatingIP54 Indoor Use OnlyDivisionGas Separation and Filtration Division EMEA
IndustryIndustrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> PharmaceuticalsElectrical RequirementsStandard: 400V 3ph 50Hz<br/><br/>Options on request.
Pressure Dew PointOptions: -70°C (-100°F) or -20°C (-4°F)Width48 inch
DivisionGas Separation and Filtration Division EMEAProduct StyleLow Energy - Vacuum Regenerated
ApplicationCompressed Air ApplicationsWeight800 mm
Connection TypeFlangedISO GradeStandard: Class 2.2.2<br/> Options: Class 2.1.2 or Class 2.3.2
TechnologyFiltrationOperating Temperature5 to 40 °C
Noise Level80 to 85 dBAOptionsHigh Performance Insulation for PDP <-40°C
Port SizeDN 50Flow Rate610 m³/h @ 7 barg (359 cfm @ 102 psig)
