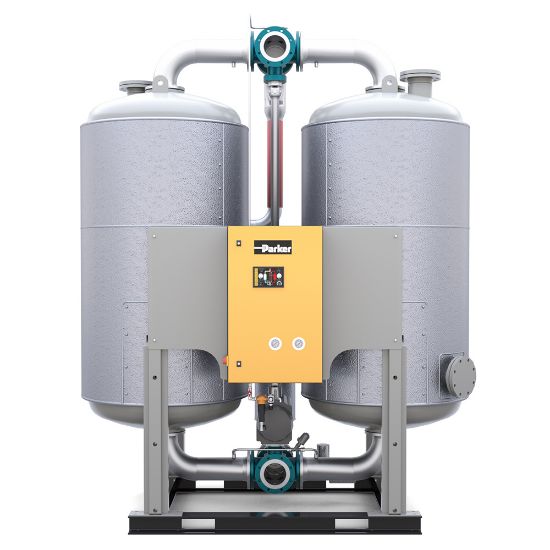

Picture of Parker W520/11VM5-F400CT - WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker W520/11VM5-F400CT - WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer

Low energy large flow industrial compressed air dryers providing flow rates up to 7300m³/h @ 7 barg with a dew point of -40°C (-20°C and -70°C options). Energy savings of up to 25%.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. W520/11VM5-F400CT
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
BrandParkerProduct SeriesWVM 5
Specifications MetPED 2014/68/EU Fluid Group IIAmbient Temperature40.0 °C Maximum
Ingress Protection RatingIP54 Indoor Use OnlyDivisionGas Separation and Filtration Division EMEA
Pressure Dew PointOptions: -70°C (-100°F) or -20°C (-4°F)Electrical RequirementsStandard: 400V 3ph 50Hz<br/><br/>Options on request.
IndustryIndustrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> PharmaceuticalsHeight3210.0 mm
Product StyleLow Energy - Vacuum RegeneratedDepth1910.0 mm
Width102 inchApplicationCompressed Air Applications
DivisionGas Separation and Filtration Division EMEAWeight4275 mm
Operating Temperature5 to 40 °CISO GradeStandard: Class 2.2.2<br/> Options: Class 2.1.2 or Class 2.3.2
TechnologyFiltrationConnection TypeFlanged
Noise Level80 to 85 dBAProduct TypeCompressed Air Dryer
Operating Pressure58 to 145 psigFlow Rate5050 m³/h @ 7 barg (2972 cfm @ 102 psig)
Port SizeDN 150OptionsHigh Performance Insulation for PDP <-40°C
