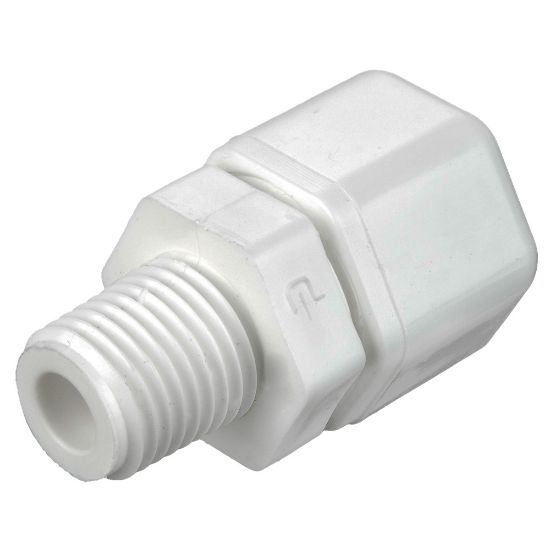

Parker W4MC4 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

AFP Availability:	Quote Required
Partner Available:	87 In Stock

Brand Parker

Part No. W4MC4

$2.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	100 °C	For Fluid Type	Other Compatible Fluids
Gripping Ring Material	Stainless Steel AISI 302	Specifications Met	NSF 51
Maximum Operating Pressure	20 bar	Seal Material	Nitrile (O-Ring)
Tube Material	Soft Metal	Body Material	Polypropylene
Application	Filtration	Minimum Operating Temperature	0 °F
Connection 1 Tube Outside Diameter	1/4" (O.D.)	Connection 1 Type	Compression
Configuration	Tube to Pipe	Product Style	Connector
Connection 2 Type	NPTF	Connection 2 Thread Size	1/4"
Body Material	White Polypropylene
