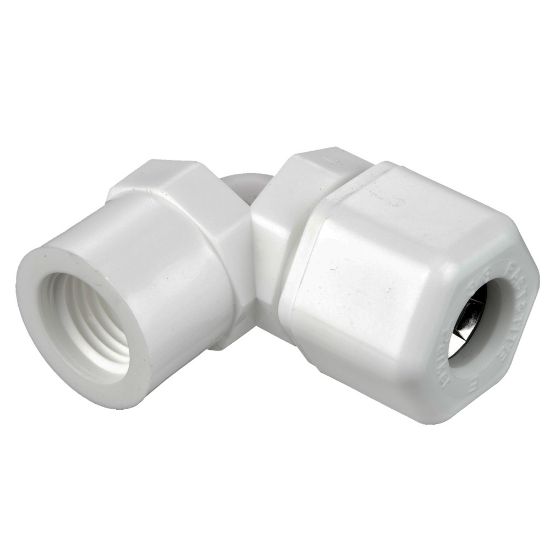

Parker W4FE4 - Compression Style Plastic Fittings, Fast-Tite

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W4FE4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-18 °C	Specifications Met	FDA
Gripping Ring Material	Stainless Steel AISI 302	Maximum Operating Pressure	20 bar
Application	Filtration	Tube Material	Soft Metal
For Fluid Type	Air	Division	Fluid System Connectors Division
Maximum Operating Temperature	212 °F	Seal Material	Nitrile (O-Ring)
Body Material	Polypropylene	Configuration	Tube to Female Pipe
Connection 2 Type	NPTF	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	1/4" (O.D.)	Shape	Elbow 90°
Body Material	White Polypropylene	Connection 2 Thread Size	1/4"
