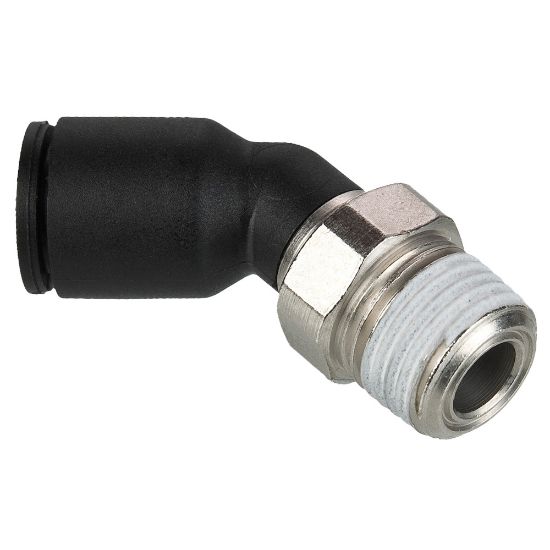

Picture of Parker W379PLP-2-2 - Composite Push-to-Connect Fittings - PLP Composite

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker W379PLP-2-2 - Composite Push-to-Connect Fittings - PLP Composite

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. W379PLP-2-2
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Silicone Freen/aTube Materialn/a
Maximum Operating Pressure290Body Materialn/a
DivisionFluid System Connectors DivisionFitting MaterialGlass Reinforced Nylon 6.6
Seal MaterialNitrileMinimum Operating Temperature-4
Specifications MetN/AGripping Ring MaterialStainless Steel
Maximum Operating Temperature175ApplicationPneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics
Connection TypeNPTF, BSPT, UNF, MetricConfigurationTube to Pipe
Connection 2 Size1/8"Body MaterialGlass-Reinforced Nylon
Connection 2 TypeNPTConnection 2 Thread Size1/8"
Connection 1 TypePush-to-ConnectConnection 1 Size1/8"
Product StyleTube to PipeConnection 1 Tube Outside Diameter1/8" (O.D.)
ShapeElbow 45°
