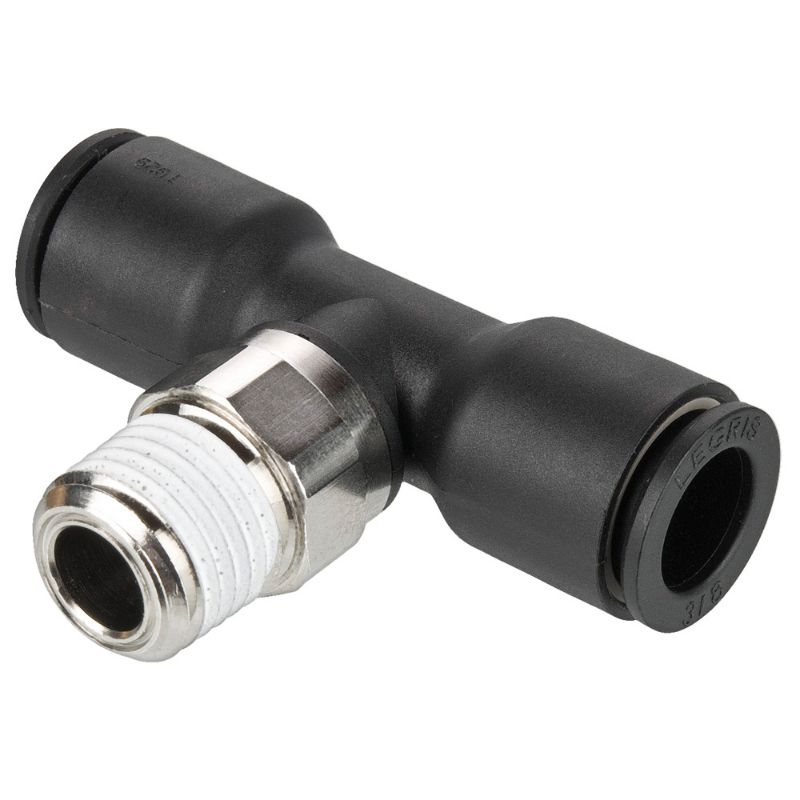

Picture of Parker W372PLP-12M-8 - Composite Push-to-Connect Fittings - PLP Composite

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker W372PLP-12M-8 - Composite Push-to-Connect Fittings - PLP Composite

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.
Availability:
Quote Required
Partner Available:4 In Stock
Brand Parker
Part No. W372PLP-12M-8
$27.39
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASpecifications MetISO 14743, DI: 97/23/EC, DI: 2002/95/EC, DI: 1907/2006
Maximum Operating Pressure290Connection Typen/a
DivisionFluid System Connectors DivisionSeal MaterialNitrile
Fitting MaterialN/AMinimum Operating Temperature-4
Silicone FreeYesGripping Ring Materialn/a
Maximum Operating Temperature175Tube MaterialNylon Semi-Rigid, Polyurethane 95 Durometer, Nylon, Fluoropolymer
Body MaterialGlass Reinforced Nylon 6.6ApplicationPneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics
Connection 3 Size1/2"ConfigurationTube to Pipe
Body MaterialGlass-Reinforced NylonConnection 2 TypeNPT
ShapeBranch TeeConnection 1 Tube Outside Diameter12 mm (O.D.)
Connection 1 TypePush-to-ConnectConnection 2 Thread Size1/2"
Product StyleTube to PipeConnection 3 TypeMale NPT Threads
Connection 1 Size12 mmConnection 2 Size12 mm
