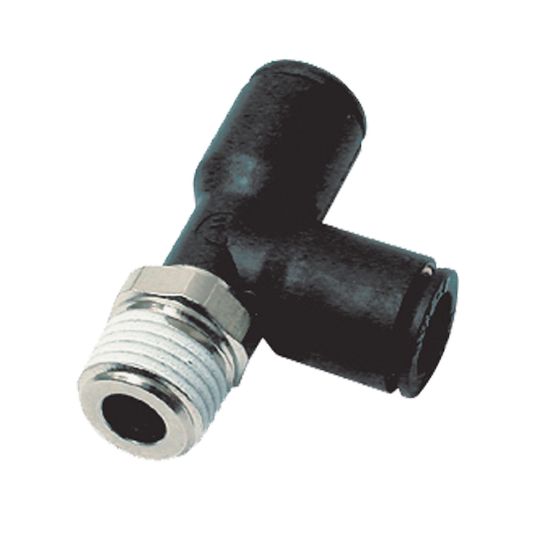

Picture of Parker W371PLP-8-4 - Composite Push-to-Connect Fittings - PLP Composite

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker W371PLP-8-4 - Composite Push-to-Connect Fittings - PLP Composite

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. W371PLP-8-4
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection TypeNPTF, BSPT, UNF, MetricApplicationPneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics
Maximum Operating Temperature175Gripping Ring MaterialStainless Steel
Maximum Operating Pressure290Seal MaterialNitrile
Tube Materialn/aSilicone Freen/a
Specifications MetN/AFitting MaterialGlass Reinforced Nylon 6.6
DivisionFluid System Connectors DivisionBody Materialn/a
Minimum Operating Temperature-4Connection 2 Thread Size1/4"
Connection 3 TypePush-to-ConnectBody MaterialGlass-Reinforced Nylon
Connection 2 Size1/4"ShapeRun Tee
ConfigurationTube to PipeConnection 1 TypePush-to-Connect
Connection 1 Size1/2"Connection 1 Tube Outside Diameter1/2" (O.D.)
Connection 2 TypeNPTConnection 3 Size1/2"
Product StyleTube to Pipe
