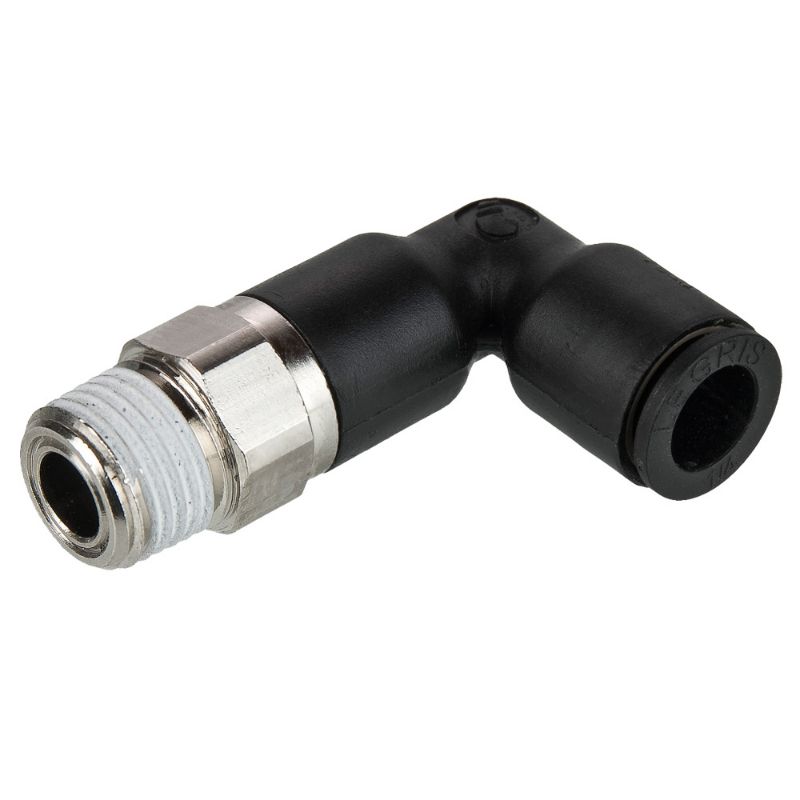

Parker W369PLPX-6-2 - Composite Push-to-Connect Fittings - PLP Composite

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W369PLPX-6-2

$25.72/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-4
Body Material	N/A	Division	Fluid System Connectors Division
Connection Type	NPTF, BSPT, UNF, Metric	Maximum Operating Temperature	175
Gripping Ring Material	Stainless Steel	Maximum Operating Pressure	290
Application	Pneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics	Silicone Free	N/A
Seal Material	Nitrile	Specifications Met	N/A
Tube Material	N/A	Fitting Material	Glass Reinforced Nylon 6.6
Connection 2 Thread Size	1/8"	Body Material	Glass-Reinforced Nylon
Connection 2 Size	1/8"	Connection 1 Type	Push-to-Connect
Shape	Elbow 90° - Extended	Connection 2 Type	NPT
Configuration	Tube to Pipe	Product Style	Tube to Pipe
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Connection 1 Size	3/8"
