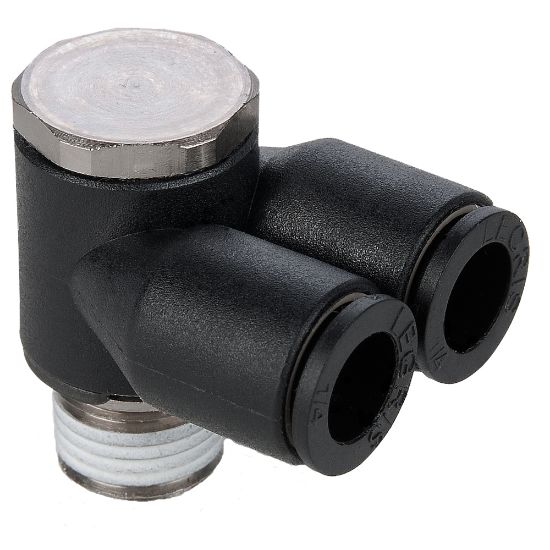

Picture of Parker W369PLPTJ-4-2 - Composite Push-to-Connect Fittings - PLP Composite

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker W369PLPTJ-4-2 - Composite Push-to-Connect Fittings - PLP Composite

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. W369PLPTJ-4-2
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Silicone Freen/aTube Materialn/a
Maximum Operating Pressure290Body Materialn/a
Minimum Operating Temperature-4DivisionFluid System Connectors Division
Fitting MaterialGlass Reinforced Nylon 6.6Seal MaterialNitrile
Specifications MetN/AGripping Ring MaterialStainless Steel
Maximum Operating Temperature175ApplicationPneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics
Connection TypeNPTF, BSPT, UNF, MetricConnection 2 TypeNPT
Body MaterialGlass-Reinforced NylonConnection 1 Size1/4"
Connection 2 Thread Size1/8"Connection 1 Tube Outside Diameter1/4" (O.D.)
ConfigurationTube to PipeProduct StyleTwin Banjo
Connection 1 TypePush-to-ConnectConnection 3 Size1/8"
Connection 3 TypeMale NPT ThreadsConnection 2 Size1/4"
California Residents: Prop-65 Warning
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials
