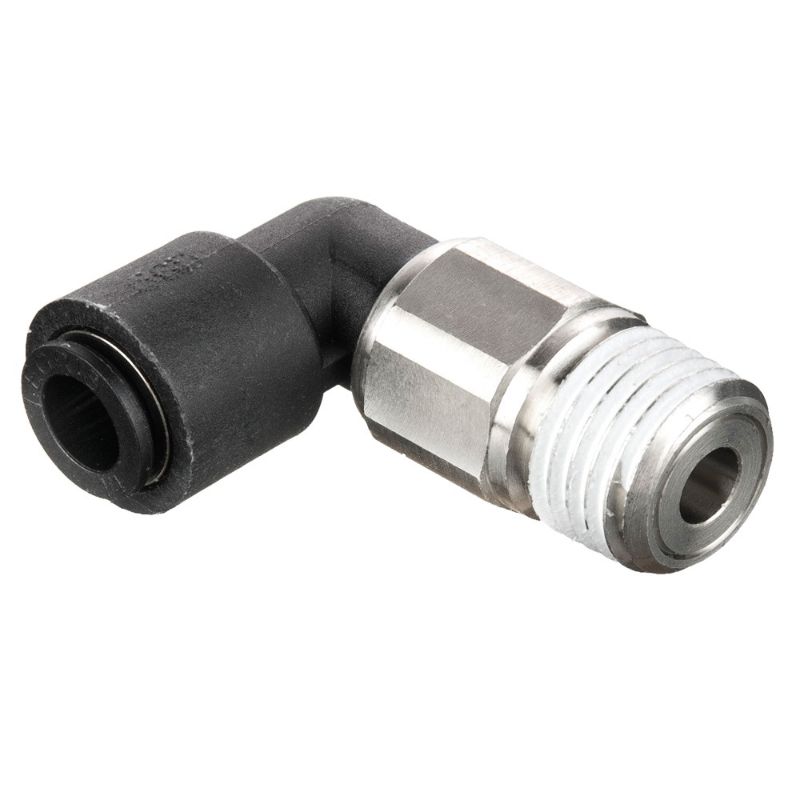

Parker W369PLPO-6M-2R - Oscillating Elbows

Parker's push-to-connect oscillating elbows are designed for optimum reliability and durability preventing tube wear due to excessive flexing of the tubing.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W369PLPO-6M-2R

$31.73/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	175	Maximum Operating Pressure	290
Gripping Ring Material	Stainless Steel	Specifications Met	ISO 14743, DI: 97/23/EC, DI: 2002/95/EC, DI: 1907/2006
Seal Material	Nitrile	Tube Material	Nylon Semi-Rigid, Polyurethane 95 Durometer, Nylon, Fluoropolymer
Fitting Material	Glass Reinforced Nylon 6.6	Body Material	Glass Reinforced Nylon 6.6
Connection 1 Size	Push-to-Connect	Minimum Operating Temperature	-4
Application	Air, Cutting Fluids, Inert Gases	Product Style	Tube to Pipe
Shape	Elbow 90°	Connection 2 Type	BSPT
Connection 1 Tube Outside Diameter	6 mm (O.D.)	Connection 2 Thread Size	1/8"
