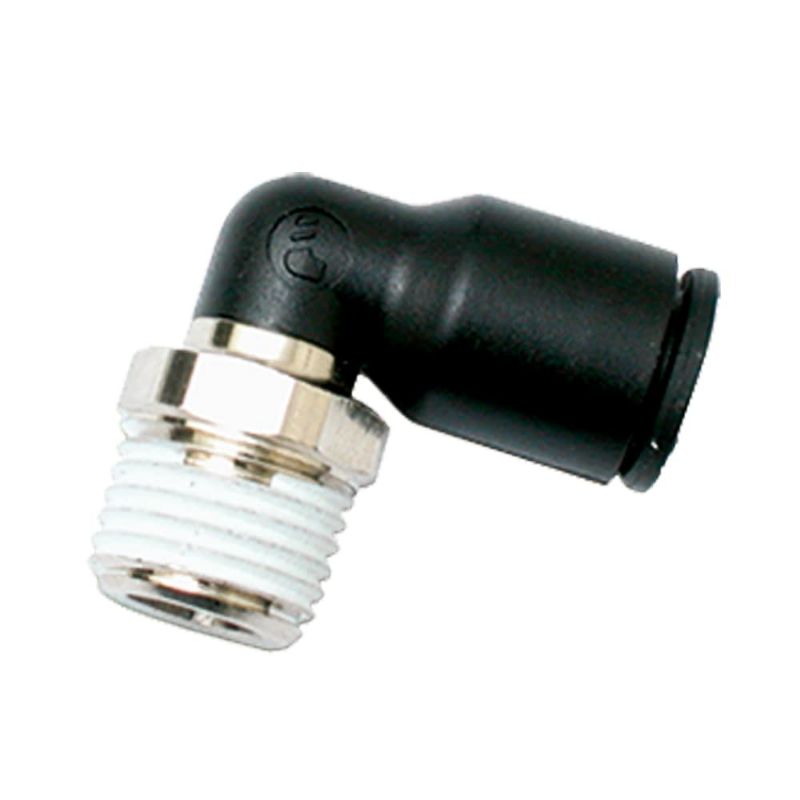

Parker W369PLP-10M-4 - Composite Push-to-Connect Fittings - PLP Composite

Name: Parker W369PLP-10M-4 - Composite Push-to-Connect Fittings - PLP Composite
SKU: W369PLP-10M-4
Price: 16.94 USD
Availability: InStock

Parker Prestolok composite push-to-connect fittings provide a simple way of connecting tubes to a fitting. Prestolok composite push in fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut.

AFP Availability:

8 In Stock

North Chesterfield, VA

Partner Available:

89 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. W369PLP-10M-4

$16.94/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Silicone Free	Yes
Fitting Material	N/A	Specifications Met	ISO 14743, DI: 97/23/EC, DI: 2002/95/EC, DI: 1907/2006
Seal Material	Nitrile	Maximum Operating Pressure	290
Tube Material	Nylon Semi-Rigid, Polyurethane 95 Durometer, Nylon, Fluoropolymer	Body Material	Glass Reinforced Nylon 6.6
Application	Pneumatics, Packaging, Textile, Vacuum, Semi-Conductors, Robotics	Minimum Operating Temperature	-4
Connection Type	N/A	Division	Fluid System Connectors Division
Maximum Operating Temperature	175	Gripping Ring Material	N/A
Connection 2 Thread Size	1/4"	Connection 1 Tube Outside Diameter	10 mm (O.D.)
Connection 2 Size	1/4"	Configuration	Tube to Pipe
Body Material	Glass-Reinforced Nylon	Connection 2 Type	NPT
Product Style	Tube to Pipe	Shape	Elbow 90°
Connection 1 Size	10 mm	Connection 1 Type	Push-to-Connect
