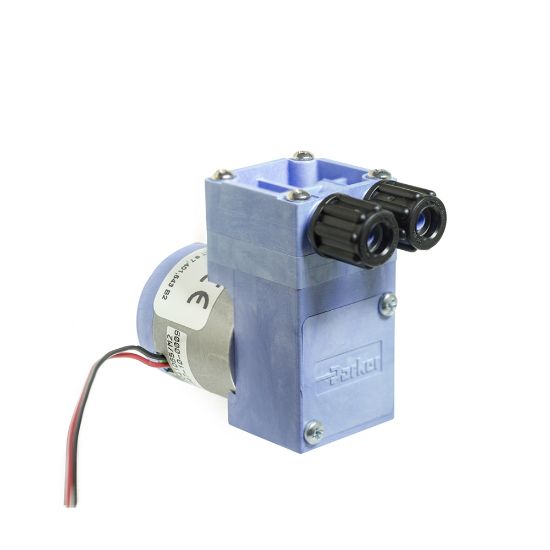

Parker W313-51 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W313-51

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Noise Level	45 dBA	Operating Pressure	30 psi
Product Type	Diaphragm Pump	For Fluid Type	Gas
Flow Rate	up to 0.7 L/min	Industry Application	Photo Processing Printers
Diaphragm Material	EPDM	Body Material	Vectra A130 LCP
Division	Precision Fluidics Division	Operational Life	10000 Hours
Weight	142 g	Width	30 mm
Length	54.8 mm	Maximum Continuous Vacuum Pressure	-8.4 psi
Maximum Continuous Pressure	2068 mbar	Operating Temperature	5 to 50 °C
Vacuum Pressure Rating	-8.4 psi	Height	2.25 inch
Motor Type	Compact Brushless DC	Free Flow Rate	Up to 0.7 L/min
Connection Style	Compression 4/6 mm Tubing	Motor Option	Compact Brushless DC
Pump Size	Single Head	Operational Life	10,000 Hours
Pump Type	Pressure and/or Vacuum
