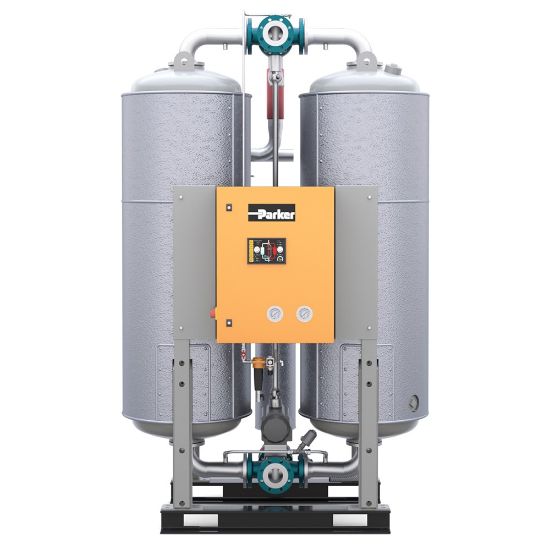

Picture of Parker W310/11VM5-F400CT - WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker W310/11VM5-F400CT - WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer

Low energy large flow industrial compressed air dryers providing flow rates up to 7300m³/h @ 7 barg with a dew point of -40°C (-20°C and -70°C options). Energy savings of up to 25%.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. W310/11VM5-F400CT
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionGas Separation and Filtration Division EMEAHeight106 inch
ISO GradeStandard: Class 2.2.2<br/> Options: Class 2.1.2 or Class 2.3.2Product StyleLow Energy - Vacuum Regenerated
ApplicationCompressed Air ApplicationsConnection TypeFlanged
TechnologyFiltrationNoise Level80 to 85 dBA
Operating Pressure58 to 145 psigProduct SeriesWVM 5
BrandParkerSpecifications MetPED 2014/68/EU Fluid Group II
Ambient Temperature40.0 °C MaximumIngress Protection RatingIP54 Indoor Use Only
Pressure Dew PointStandard: -40°C (-40°F)<br/>Product TypeCompressed Air Dryer
DivisionGas Separation and Filtration Division EMEAWidth2115.0 mm
IndustryIndustrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> PharmaceuticalsElectrical RequirementsStandard: 400V 3ph 50Hz<br/><br/>Options on request.
Depth1702.0 mmOperating Temperature41 to 104 °F
Weight5755 inchFlow Rate3050 m³/h @ 7 barg (1795 cfm @ 102 psig)
OptionsHigh Performance Insulation for PDP <-40°CPort SizeDN 100
