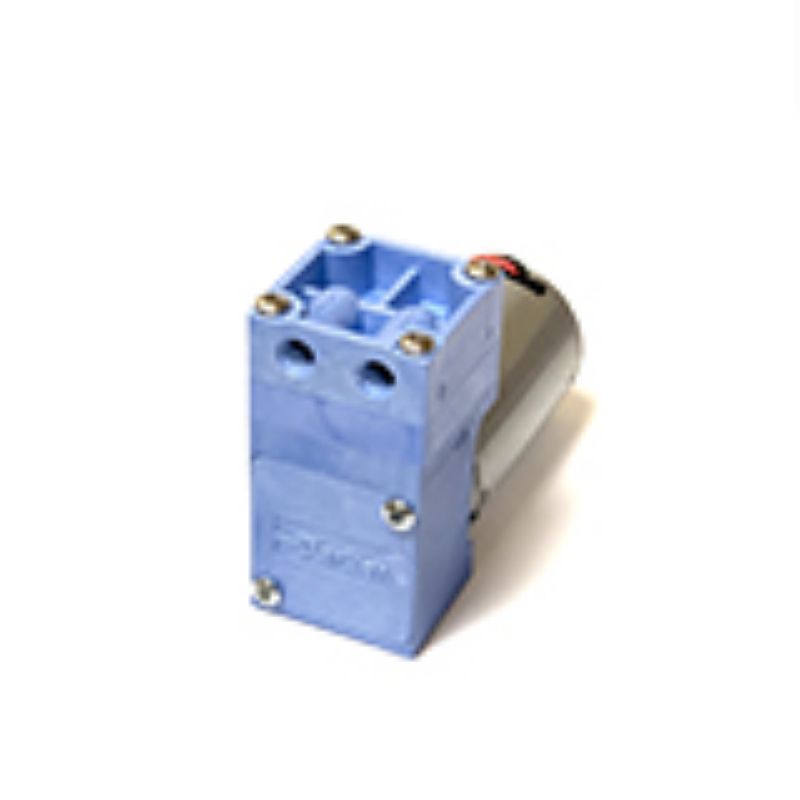

Parker W309-21-01 - LTC Miniature Diaphragm Pump (Liquid)

Parker’s LTC Miniature Diaphragm pump is a compact versatile pump with the option of a brush or brushless DC motor drives that can be configured for specific requirements and handle a wide variety of liquid media and range of pressures.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W309-21-01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Diaphragm Pump	Length	77.5 mm
Motor Type	Iron Core Brush DC with 2" Wire Leads and Molex Connector 70107-0001.	Flow Rate	up to 0.7 L/min
Operating Pressure	2068 mbar	Diaphragm Material	EPDM
Division	Precision Fluidics Division	Operational Life	3000 Hours
Body Material	Vectra A130 LCP	Noise Level	45 dBA
Maximum Continuous Vacuum Pressure	-8.4 psi	For Fluid Type	Gas
Vacuum Pressure Rating	-432 mm-Hg	Weight	198 g
Operating Temperature	5 to 50 °C	Maximum Continuous Pressure	2068 mbar
Width	1.18 inch	Height	2.25 inch
Industry Application	Clinical Chemistry	Free Flow Rate	Up to 0.7 L/min
Pump Type	Pressure and/or Vacuum	Connection Style	Threaded 1/4-28 UNF
Pump Size	Single Head	Motor Option	Iron Core Brush DC
Operational Life	3,000 Hours
