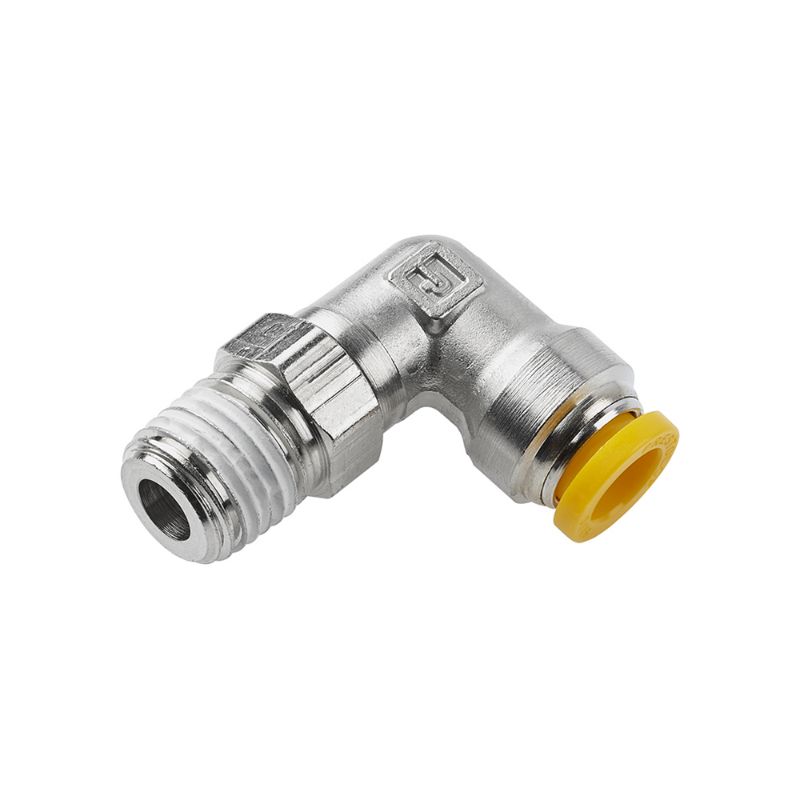

Parker W169PLP-6M-2R - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W169PLP-6M-2R

$6.33

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Fluid & Gas Handling
Vacuum Pressure Rating	28 Inch-Hg	Division	Fluid System Connectors Division
Maximum Operating Temperature	200 °F	Seal Material	Nitrile
Maximum Operating Pressure	20.6 bar	Materials of Construction	PVDF (Button)
Tube Material	Nylon	For Fluid Type	Oil
Gripping Ring Material	Stainless Steel	Hex Size	7/16 inch
Brand	Parker	Application	Automotive
Minimum Operating Temperature	-17.7 °C	Region of Origin	United States
Industry	Semiconductor	Body Material	Brass, Nickel-plated
Specifications Met	UL 94 V-0	Division	Fluid System Connectors Division
Connection 1 Type	Push-to-Connect	Connection 2 Type	Male BSPT
Connection 1 Size	6 mm	Configuration	Tube to Pipe
Connection 2 Size	1/8"	Shape	Elbow 90° - Swivel

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
