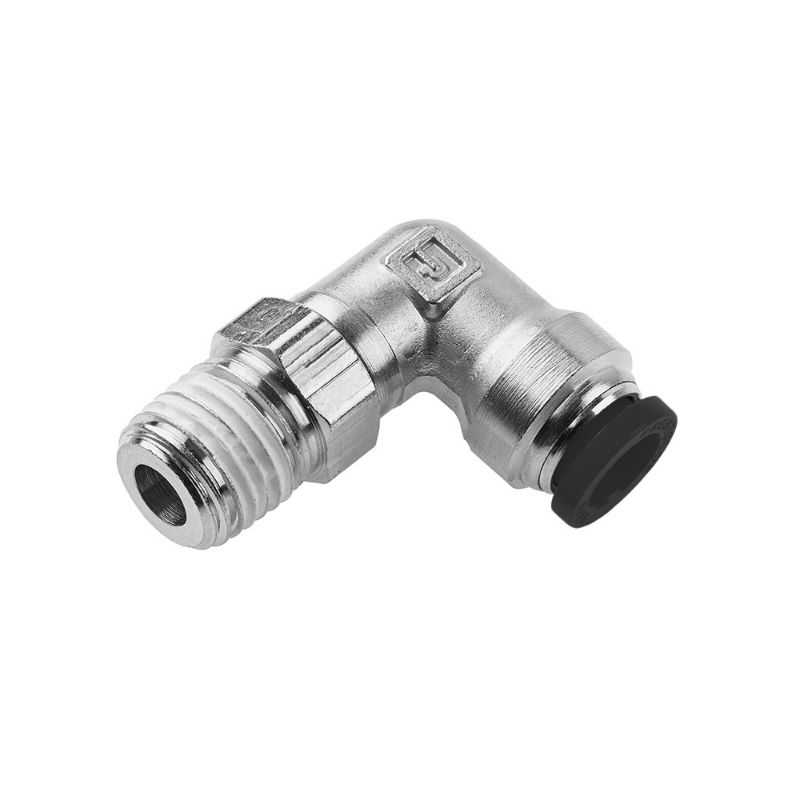

Parker W169PLP-5/32-1 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Name: Parker W169PLP-5/32-1 - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal
SKU: W169PLP-5/32-1
Price: 11.58 USD
Availability: InStock

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:

7 In Stock

Sumter, SC	6
North Chesterfield, VA	1

Partner Available:

81 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. W169PLP-5/32-1

$11.58/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	PVDF (Button)
Vacuum Pressure Rating	28 Inch-Hg	For Fluid Type	Inert Gases
Maximum Operating Temperature	200 °F	Division	Fluid System Connectors Division
Tube Material	Nylon	Seal Material	Nitrile
Brand	Parker	Industry	Industrial Manufacturing Equipment
Gripping Ring Material	Stainless Steel	Maximum Operating Pressure	300 psi
Division	Fluid System Connectors Division	Minimum Operating Temperature	-17.7 °C
Specifications Met	UL 94 V-0	Application	Automotive
Technology	Fluid & Gas Handling	Region of Origin	United States
Body Material	Brass, Nickel-plated	Hex Size	3/8 inch
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 1 Size	5/32"	Connection 2 Size	1/16"
Connection 2 Type	Male NPTF	Shape	Elbow 90° - Swivel
