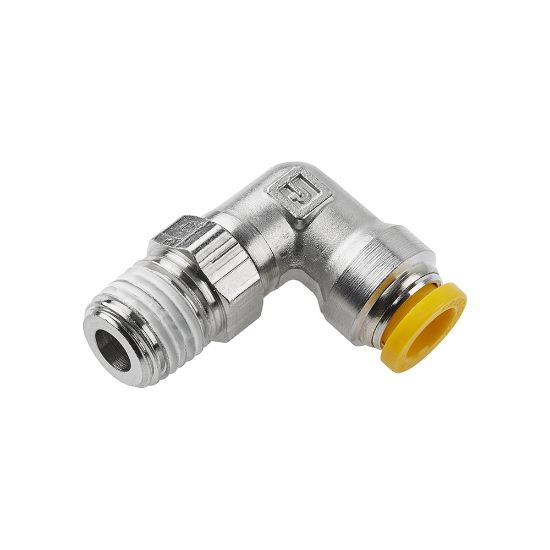

Parker W169PLP-4M-4R - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. W169PLP-4M-4R

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Industry	Automotive	Gripping Ring Material	Stainless Steel
Hex Size	9/16 inch	Tube Material	Nylon
Maximum Operating Pressure	300 psi	Technology	Fluid & Gas Handling
For Fluid Type	Air	Brand	Parker
Application	Air Lines	Minimum Operating Temperature	-17.7 °C
Materials of Construction	PVDF (Button)	Body Material	Brass, Nickel-plated
Division	Fluid System Connectors Division	Region of Origin	United States
Division	Fluid System Connectors Division	Vacuum Pressure Rating	28 Inch-Hg
Maximum Operating Temperature	93.3 °C	Specifications Met	UL 94 V-0
Seal Material	Nitrile	Connection 2 Size	1/4"
Shape	Elbow 90° - Swivel	Connection 1 Type	Push-to-Connect
Connection 2 Type	Male BSPT	Connection 1 Size	4 mm
Configuration	Tube to Pipe
