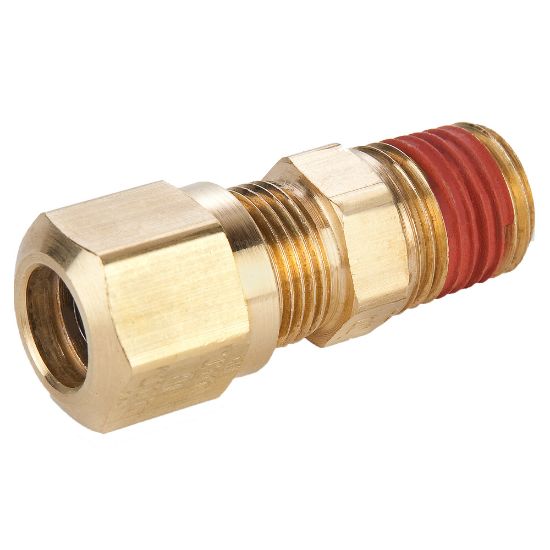

Parker VS68NTA-12-12 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker VS68NTA-12-12 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS68NTA-12-12
Price: 29.32 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:

6 In Stock

Jacksonville, FL	4
Sumter, SC	1
Knoxville, TN	1

Partner Available:

85 In Stock

Brand Parker

Part No. VS68NTA-12-12

$29.32

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Nut Material	Brass
Dimensional Weight	0.27594424460431655 lb	Thread Sealant Material	Vibra-Seal 516
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Sleeve Material	Brass
Minimum Operating Temperature	-40 °C	Body Material	Brass
Application	Accessories	Maximum Operating Temperature	200 °F
Division	Fluid System Connectors Division	Maximum Operating Pressure	10 bar
Tube Material	Stainless Steel	Connection 2 Style	Male Pipe
Connection 2 Tube O.D. (inch)	na	Connection 1 Tube O.D. (inch)	3/4
Shape	Connector	Connection 2 Thread Size (inch)	3/4
Connection 1 Style	Compression	Style	Tube to Pipe
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
