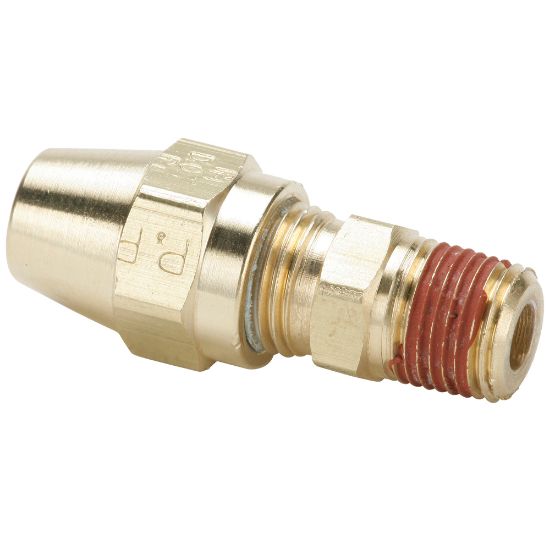

Parker VS68AB-4-6 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

AFP Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. VS68AB-4-6

$12.08/each

Products specifications

Attribute name	Attribute value
UOM	EA	Nut Material	Brass
Body Material	Brass	Sleeve Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J246	Application	Air Brake
Minimum Operating Temperature	-53 °C	Maximum Operating Pressure	27 bar
Tube Material	Annealed Copper	Maximum Operating Temperature	121 °C
Division	Fluid System Connectors Division	Thread Sealant Material	Vibra-Seal 516
Connection 2 Tube O.D. (inch)	na	Connection 2 Style	Male Pipe
Shape	Connector	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Thread Size (inch)	3/8
Style	Tube to Pipe
