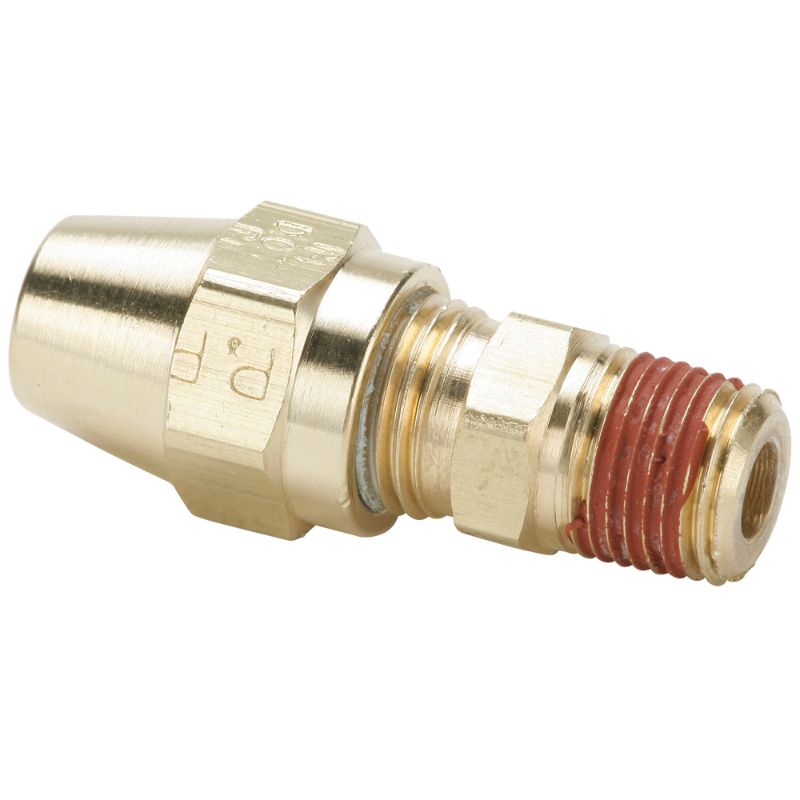

Parker VS68AB-4-2 - Air Brake D.O.T. compression style fittings, AB

Name: Parker VS68AB-4-2 - Air Brake D.O.T. compression style fittings, AB
SKU: VS68AB-4-2
Price: 5.74 USD
Availability: InStock

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:

15 In Stock

Richmond, VA	9
Knoxville, TN	6

Partner Available:

15 In Stock

Brand Parker

Part No. VS68AB-4-2

$5.74

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Air Brake
Nut Material	Brass	Specifications Met	DOT FMVSS 571.106, SAE J246
Thread Sealant Material	Vibra-Seal 516	Sleeve Material	Brass
Maximum Operating Pressure	400 psi	Body Material	Brass
Maximum Operating Temperature	250 °F	Division	Fluid System Connectors Division
Tube Material	Annealed Copper	Minimum Operating Temperature	-53 °C
Connection 2 Style	Male Pipe	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	1/4	Shape	Connector
Connection 1 Style	Compression	Style	Tube to Pipe
Connection 2 Thread Size (inch)	1/8
