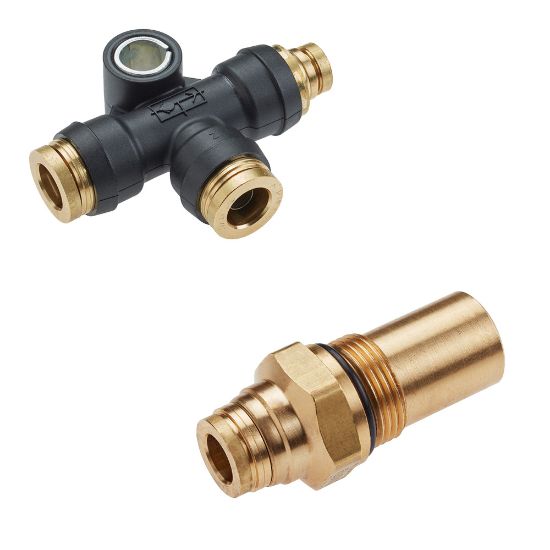

Parker VS371PTCRSV-4-6 - Air Brake DOT Single & Double Check Valves

Parker's DOT Check Valves were designed to deliever increased flow capacity and reliable sealing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VS371PTCRSV-4-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
O-Ring Material	Buna N	Product Type	Check Valves
Body Material	Composite	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Industry	Automotive, Trucks, and Buses
Division	Fluid System Connectors Division	Media	Compressed Air
Connection 3 Size	1/4	Connection 1 Size	3/8
Collet Material	Brass	Tube Material	J844 Type A & B Nylon Tubing
Application	Air Brake	Specifications Met	DOT FMVSS 571.106, SAE J1409, & SAE J1410
Thread Sealant Material	Vibra-Seal	Connection 3 Type	Push-to-Connect
Connection 2 Type	Push-to-Connect	Brand	Parker
Connection 1 Type	Male NPT Thread	Connection 2 Size	1/4
Product Style	Tube to Pipe	Valve Type	Double Check Valve
Shape	Run Tee	Product Style	Tube to Pipe
Body Material	Composite	Connection 3 Size	1/4 inch
Valve Type	Double Check Valve	Shape	Tee
Connection 1 Type	Male NPT Thread	Connection 1 Size	3/8 inch
Connection 2 Type	Push-to-Connect	Connection 3 Type	Push-to-Connect
Connection 2 Size	1/4 inch
