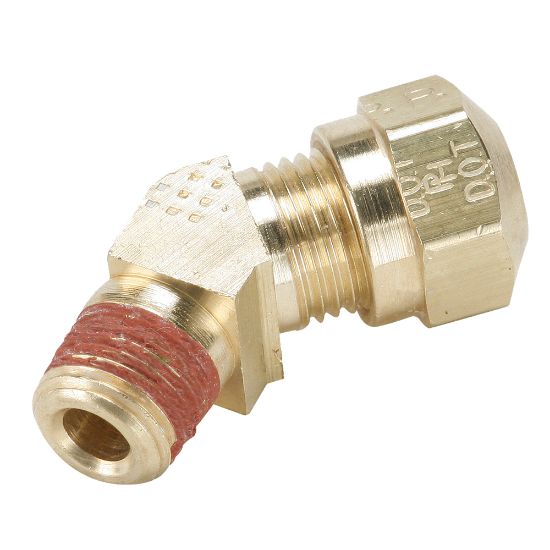

Parker VS279NTA-10-8 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker VS279NTA-10-8 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: VS279NTA-10-8
Price: 44.48 USD
Availability: LimitedAvailability

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

AFP Availability:

2 Limited Stock

Sumter, SC

Partner Available:

95 In Stock

Brand Parker

Part No. VS279NTA-10-8

$44.48/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	200 °F
Division	Fluid System Connectors Division	Thread Sealant Material	Vibra-Seal 516
Application	Air Brake, Accessories	Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-40 °C	Body Material	Brass
Dimensional Weight	0.27594424460431655 lb	Nut Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Sleeve Material	Brass
Tube Material	SAE J844 Type A & B Nylon Tubing	Style	Tube to Pipe
Connection 3 Style	na	Connection 1 Tube O.D. (inch)	5/8
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/2
Connection 2 Tube O.D. (inch)	na	Connection 3 Thread Size (inch)	na
Connection 1 Style	Compression	Shape	45° Elbow
