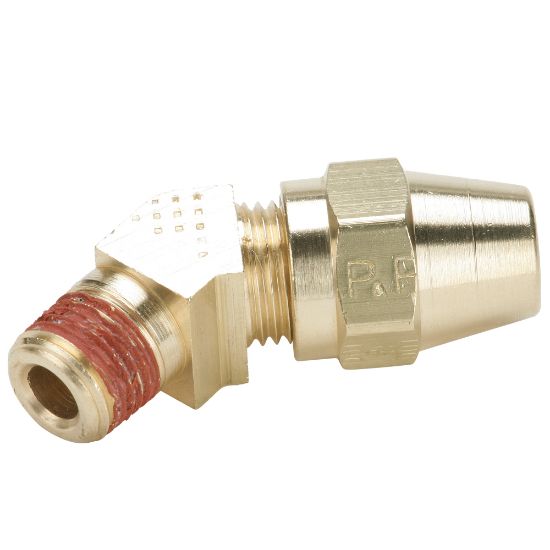

Parker VS279AB-4-2 - Air Brake D.O.T. compression style fittings, AB

Parker's air brake AB fittings are economical compression style fittings for copper air brake lines. AB fittings meet the functional requirements of SAE J246 and the performance requirements of D.O.T. FMVSS571.106.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. VS279AB-4-2

$16.02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Brass
Specifications Met	DOT FMVSS 571.106, SAE J246	Nut Material	Brass
Maximum Operating Temperature	121 °C	Sleeve Material	Brass
Maximum Operating Pressure	27 bar	Application	Air Brake
Minimum Operating Temperature	-65 °F	Division	Fluid System Connectors Division
Thread Sealant Material	Vibra-Seal 516	Tube Material	Annealed Copper
Style	Tube to Pipe	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	1/4	Connection 1 Style	Compression
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/8
Shape	45° Elbow
